1992 Yamaha WR200 Shift Cam Fork OEM Parts Diagram

Submodel WR200RD - 1992

Shop Aftermarket Parts

TO VIEW YAMAHA OEM PARTS, PLEASE SIGN IN

Important message:

Please correct the information below:

Existing Account:



Forgot your password? Click Here.

Quick Log In:



Note: Password must be at least 6 characters in length and is case sensitive.


PLEASE SELECT A SUBMODEL

Some OEM parts vary between different machine specifications and paint schemes.
Choose your machine's submodel to help with fitment.

Submodels
Placeholder
SELECT MACHINE

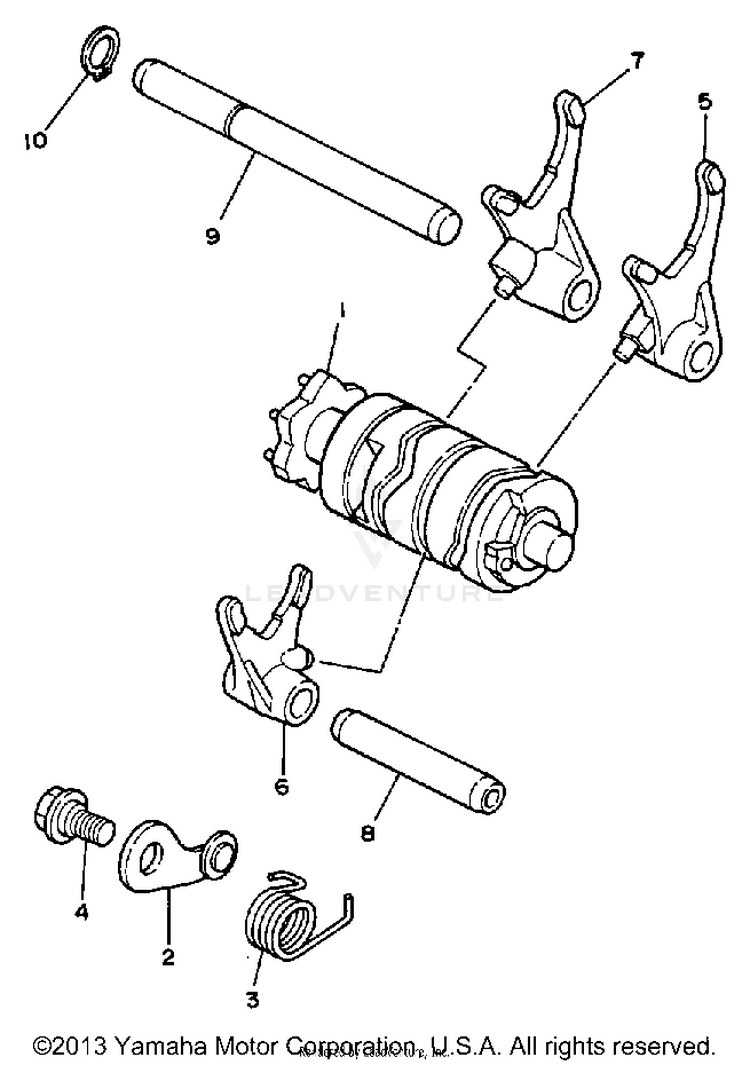

SHIFT CAM FORK

OEM Assembly Image

Click and drag to reposition image. Use mouse wheel to zoom in and out.

Shipping Notice
⚠ WARNING: Cancer and Reproductive Harm -

Get additional RM Cash on OEM purchases!

Select parts to add, then click
TagPart #DescriptionMSRPOur PriceStock StatusQtyAdd?
13XP-18540-00-00SHIFT CAM ASSEMBLY$158.99$125.95Usually ships in 7-10 business days
23BN-18140-00-00STOPPER LEVER ASSEMBLY$11.49$9.42Usually ships in 7-10 business days
390508-26561-00SPRING, TORSION$10.49$8.182 In-Stock
490109-06190-00

(replaces part #
90109-063F7-00)

BOLT$5.99$4.6710+ In-Stock
555K-18511-01-00FORK, SHIFT 1$38.99$31.97Usually ships in 7-10 business days
62RH-18512-00-00FORK, SHIFT 2$59.99$46.79Usually ships in 7-10 business days
755K-18513-00-00FORK, SHIFT 3$38.99$31.97Usually ships in 7-10 business days
855K-18531-00-00BAR, SHIFT FORK GUIDE 1$15.49$12.70Usually ships in 7-10 business days
93BN-18535-00-00BAR, SHFT FRK GDE 2$17.49$14.34Usually ships in 7-10 business days
1099009-10400-00CIRCLIP$5.49$4.2810+ In-Stock
