1992 Yamaha WR200 Headlight OEM Parts Diagram

Submodel WR200RD - 1992

Shop Aftermarket Parts

TO VIEW YAMAHA OEM PARTS, PLEASE SIGN IN

Important message:

Please correct the information below:

Existing Account:



Forgot your password? Click Here.

Quick Log In:



Note: Password must be at least 6 characters in length and is case sensitive.


PLEASE SELECT A SUBMODEL

Some OEM parts vary between different machine specifications and paint schemes.
Choose your machine's submodel to help with fitment.

Submodels
Placeholder
SELECT MACHINE

HEADLIGHT

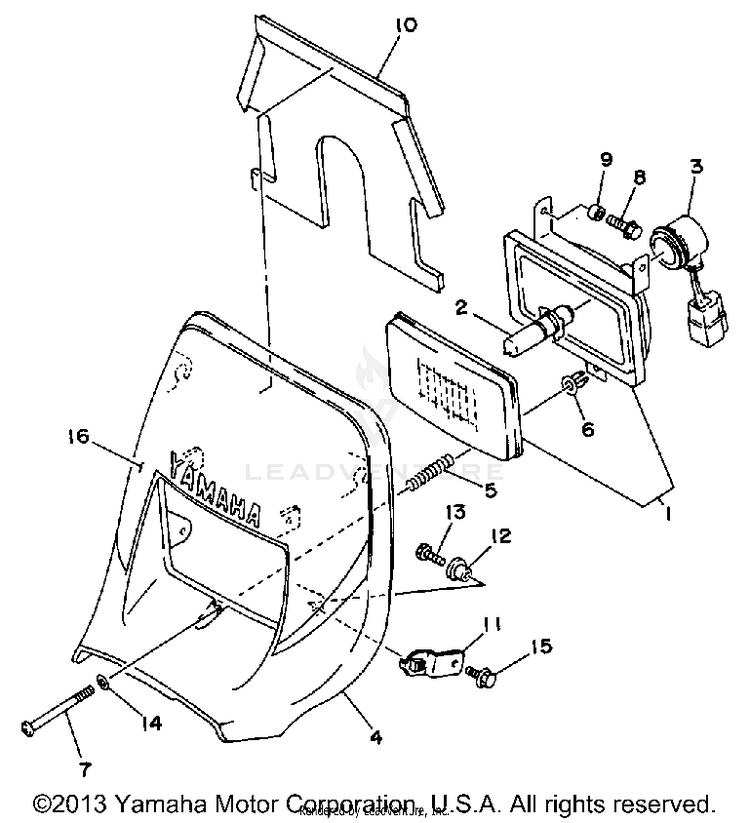

OEM Assembly Image

Click and drag to reposition image. Use mouse wheel to zoom in and out.

Shipping Notice
⚠ WARNING: Cancer and Reproductive Harm -

Get additional RM Cash on OEM purchases!

Select parts to add, then click
TagPart #DescriptionMSRPOur PriceStock StatusQtyAdd?
13XP-84320-00-00LENS ASSEMBLY$95.63$74.59Not Shipping
23FW-84314-00-00BULB, HEADLIGHT (12V-35/36.5W)$84.99$66.29Usually ships in 7-10 business days
33FW-84340-01-00

(replaces part #
3FW-84340-00-00)

SOCKET CORD ASSY 1$25.99$21.31Not Shipping
43XP-84311-00-00BODY, HEADLIGHT$131.99$102.95Usually ships in 7-10 business days
555U-84332-00-00SPRING, SCREW$4.80$4.32Usually ships in 7-10 business days
650W-84334-00-00NUT, ADJUSTING$7.49$6.74Not Shipping
798580-04540-00

(replaces part #
849-84724-00-00)

SCREW, PAN HEAD$2.70$2.324 In-Stock
855U-84337-00-00BOLT, SPECIAL$8.49$7.64Usually ships in 7-10 business days
955U-84328-00-00SPACER$3.30$2.97Usually ships in 7-10 business days
103XP-84196-00-00COVER, SOCKET$24.99$20.49Not Shipping
113XP-84118-00-00STAY, HEADLIGHT 1$33.99$27.87Not Shipping
123XP-84145-00-00COLLAR, BODY FITING$12.49$10.24Not Shipping
1397017-06016-00

(replaces part #
97016-06016-00)

BOLT$9.49$7.405 In-Stock
1492990-04600-00

(replaces part #
92901-04600-00)

WASHER, PLATE$0.99$0.907 In-Stock
1595817-06012-00

(replaces part #
95816-06012-00)

BOLT, FLANGE$1.95$1.7710+ In-Stock
163XP-84141-11-00EMBLEM, HEADLIGHT$44.99$36.89Not Shipping
