1992 Yamaha WR200 Fender OEM Parts Diagram

Submodel WR200RD - 1992

Shop Aftermarket Parts

TO VIEW YAMAHA OEM PARTS, PLEASE SIGN IN

Important message:

Please correct the information below:

Existing Account:



Forgot your password? Click Here.

Quick Log In:



Note: Password must be at least 6 characters in length and is case sensitive.


PLEASE SELECT A SUBMODEL

Some OEM parts vary between different machine specifications and paint schemes.
Choose your machine's submodel to help with fitment.

Submodels
Placeholder
SELECT MACHINE

FENDER

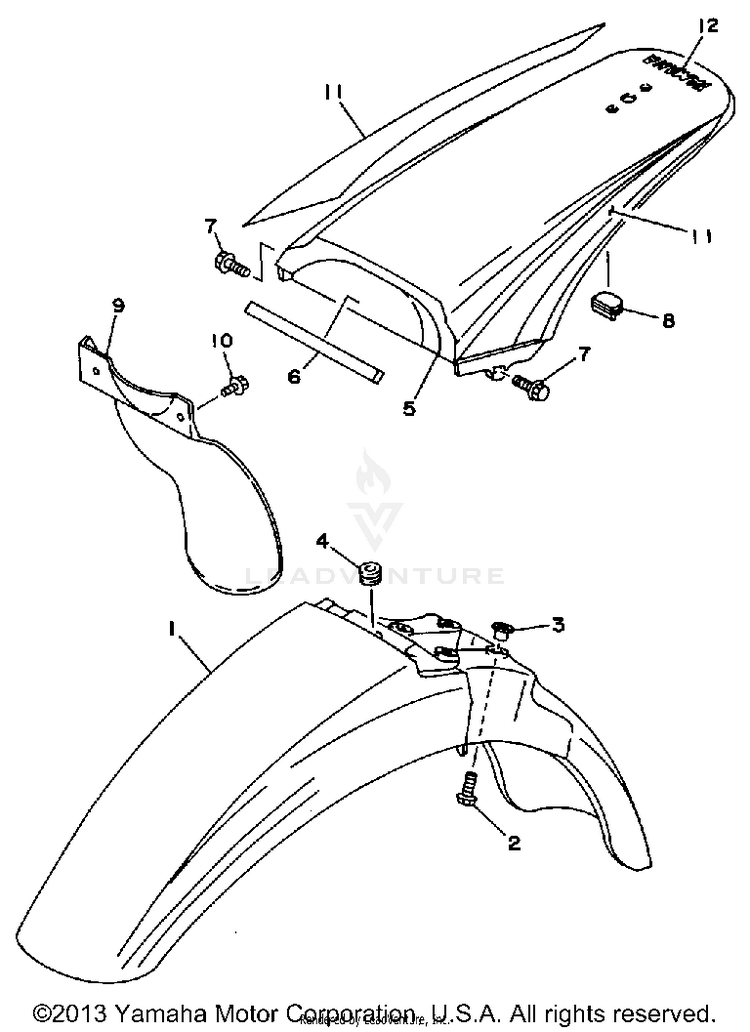

OEM Assembly Image

Click and drag to reposition image. Use mouse wheel to zoom in and out.

Shipping Notice
⚠ WARNING: Cancer and Reproductive Harm -

Get additional RM Cash on OEM purchases!

Select parts to add, then click
TagPart #DescriptionMSRPOur PriceStock StatusQtyAdd?
13XP-21511-00-00FENDER, FRONT$58.19$45.39Not Shipping
290119-06172-00

(replaces part #
90119-06097-00)

BOLT, WITH WASHER$11.49$8.9610+ In-Stock
390387-062V8-00COLLAR$4.65$4.18Usually ships in 7-10 business days
490480-13014-00

(replaces part #
90480-13398-00)

GROMMET$9.49$7.4010+ In-Stock
54BF-21611-00-00FENDER, REAR$65.87$51.38Not Shipping
63XP-21639-00-00DAMPER 2$1.85$1.66Not Shipping
790119-06207-00BOLT, WITH WASHER$1.18$1.06Usually ships in 7-10 business days
890480-16185-00GROMMET$9.49$7.407 In-Stock
939X-21642-00-00GUARD, FLAP$87.99$68.632 In-Stock
1090119-06117-00

(replaces part #
90119-06194-00)

BOLT, WITH WASHER$5.49$4.284 In-Stock
113XP-2165A-11-00GRPHC SET RR FNDR$67.99$53.03Not Shipping
1299244-00080-00

(replaces part #
99244-00020-00)

EMBLEM, YAMAHA$17.49$13.644 In-Stock
