1992 Yamaha WR200 Rear Brake Caliper OEM Parts Diagram

Submodel WR200RD - 1992

Shop Aftermarket Parts

TO VIEW YAMAHA OEM PARTS, PLEASE SIGN IN

Important message:

Please correct the information below:

Existing Account:



Forgot your password? Click Here.

Quick Log In:



Note: Password must be at least 6 characters in length and is case sensitive.


PLEASE SELECT A SUBMODEL

Some OEM parts vary between different machine specifications and paint schemes.
Choose your machine's submodel to help with fitment.

Submodels
Placeholder
SELECT MACHINE

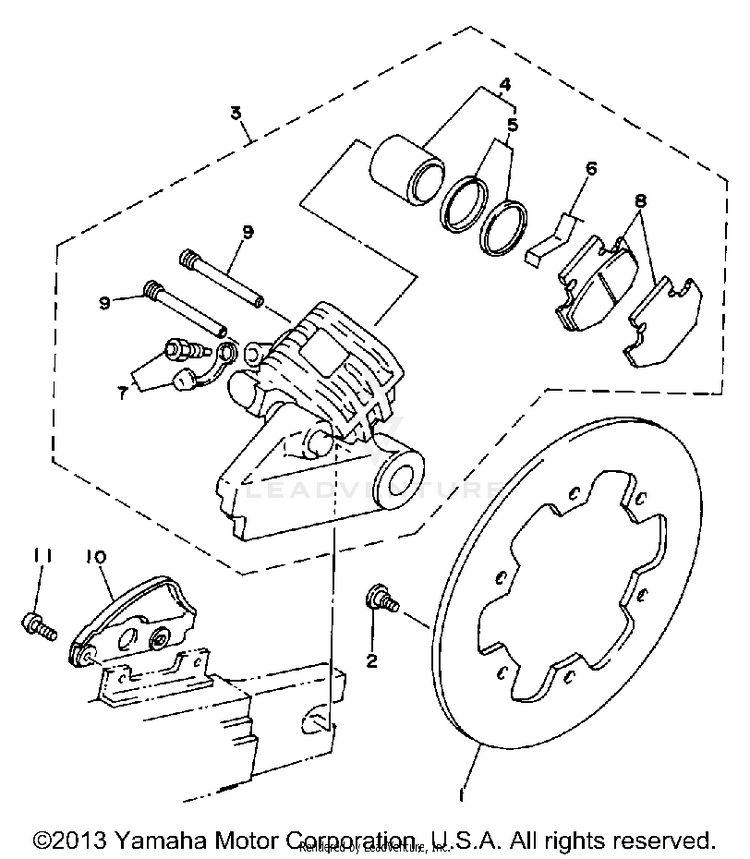

REAR BRAKE CALIPER

OEM Assembly Image

Click and drag to reposition image. Use mouse wheel to zoom in and out.

Shipping Notice
⚠ WARNING: Cancer and Reproductive Harm -

Get additional RM Cash on OEM purchases!

Select parts to add, then click
TagPart #DescriptionMSRPOur PriceStock StatusQtyAdd?
14GY-2582W-00-00

(replaces part #
3XP-2582W-00-00)

DISK, REAR BRAKE 2$130.99$102.17Usually ships in 7-10 business days
290109-065F3-00BOLT$9.49$7.4010+ In-Stock
33XP-2580W-00-00CALIPER ASSEMBLY REAR2$312.99$244.13Usually ships in 7-10 business days
43SP-W0057-50-00PISTON ASSY, CALIPER$91.99$71.75Usually ships in 7-10 business days
53JD-25803-50-00

(replaces part #
3JD-W0047-50-00)

CALIPER SEAL KIT$17.99$14.034 In-Stock
63SP-25919-51-00SUPPORT, PAD$24.99$20.49Usually ships in 7-10 business days
736Y-W0048-00-00BLEED SCREW KIT$10.99$8.5710+ In-Stock
83XP-W0046-00-00BRAKE PAD/KIT$41.99$32.751 In-Stock
93FV-25924-00-00

(replaces part #
3SP-25924-51-00)

PIN, PAD$25.99$20.276 In-Stock
103JD-27491-00-00PROTECTOR$94.93$74.05Usually ships in 7-10 business days
1192014-06012-00

(replaces part #
92011-06012-00)

BOLT, BUTTON HEAD$3.55$3.055 In-Stock
