1992 Yamaha WR200 Handlebar Cable OEM Parts Diagram

Submodel WR200RD - 1992

Shop Aftermarket Parts

TO VIEW YAMAHA OEM PARTS, PLEASE SIGN IN

Important message:

Please correct the information below:

Existing Account:



Forgot your password? Click Here.

Quick Log In:



Note: Password must be at least 6 characters in length and is case sensitive.


PLEASE SELECT A SUBMODEL

Some OEM parts vary between different machine specifications and paint schemes.
Choose your machine's submodel to help with fitment.

Submodels
Placeholder
SELECT MACHINE

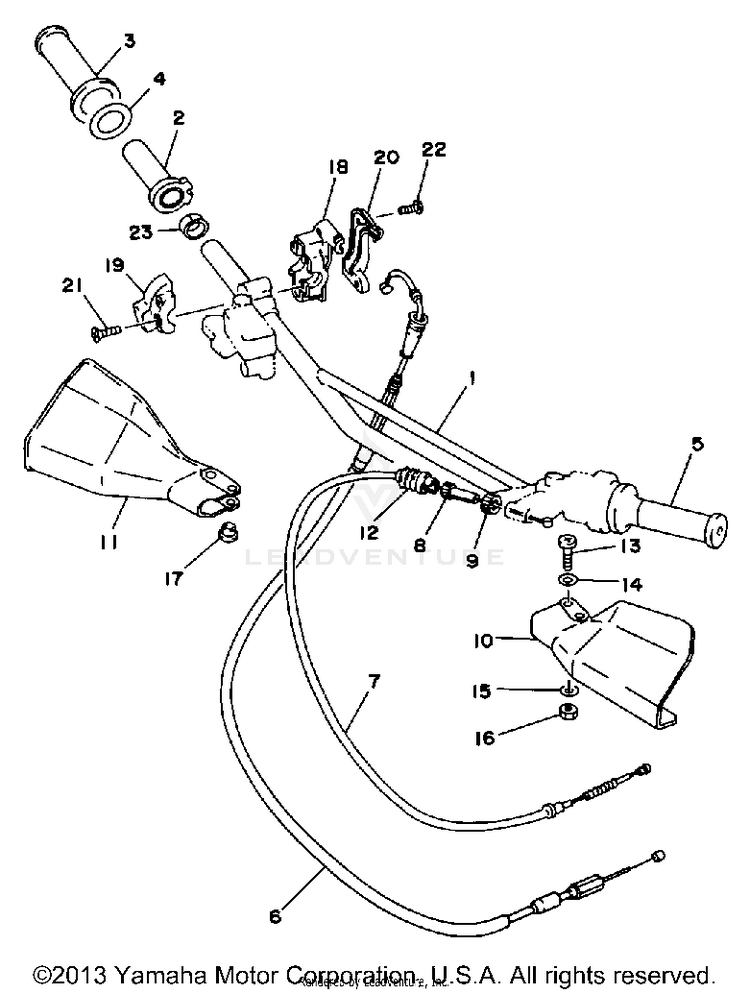

HANDLEBAR CABLE

OEM Assembly Image

Click and drag to reposition image. Use mouse wheel to zoom in and out.

Shipping Notice
⚠ WARNING: Cancer and Reproductive Harm -

Get additional RM Cash on OEM purchases!

Select parts to add, then click
TagPart #DescriptionMSRPOur PriceStock StatusQtyAdd?
13XJ-26111-00-00HANDLEBAR$76.99$60.05Not Shipping
222W-26243-00-00

(replaces part #
322-26243-00-00)

TUBE, THROTTLE GUIDE$33.99$26.512 In-Stock
31LX-26242-01-00GRIP (RIGHT)$37.99$29.636 In-Stock
41M1-26249-01-00RING, LEAF$8.49$6.628 In-Stock
51LX-26241-01-00GRIP (LEFT)$36.99$28.854 In-Stock
64BF-26311-01-00

(replaces part #
4BF-26311-00-00)

CABLE,THROTTLE 1$56.99$44.45Usually ships in 7-10 business days
73XP-26335-00-00CABLE, CLUTCH$63.99$49.91Usually ships in 7-10 business days
890123-08002-00

(replaces part #
90123-08046-00)

BOLT$10.49$8.1810+ In-Stock
990179-08030-00

(replaces part #
90179-08148-00)

NUT$10.49$8.1810+ In-Stock
103BN-26141-20-00GUARD, BRUSH 1$26.99$21.051 In-Stock
113BN-26142-20-00GUARD, BRUSH 2$27.99$21.831 In-Stock
121E6-26342-00-00BOOT, CABLE$33.99$26.514 In-Stock
1397885-06035-00

(replaces part #
98580-06035-00)

SCREW, PAN HEAD$6.49$5.119 In-Stock
1492990-06600-00

(replaces part #
92901-06600-00)

WASHER, PLAIN (646)$2.95$2.797 In-Stock
1592990-06600-00

(replaces part #
92901-06600-00)

WASHER, PLAIN (646)$2.95$2.797 In-Stock
1695617-06100-00

(replaces part #
95601-06100-00)

NUT, U$2.90$2.4910+ In-Stock
1790387-06500-00COLLAR$9.49$7.403 In-Stock
185X2-26281-00-00CAP, GRIP UPPER$41.99$32.7510+ In-Stock
19322-26282-00-00CAP, GRIP UNDER$31.99$24.954 In-Stock
205X2-2628H-01-00CAP, WIRE$30.99$24.1710+ In-Stock
2198707-04012-00

(replaces part #
98706-04012-00)

SCREW, FLAT HEAD-$1.9410+ In-Stock
2290157-05M19-00

(replaces part #
98586-05016-00)

SCREW, PAN HEAD$3.75$3.225 In-Stock
2390387-22660-00COLLAR$10.49$8.183 In-Stock
