1992 Yamaha WR200 Fuel Tank OEM Parts Diagram

Submodel WR200RD - 1992

Shop Aftermarket Parts

TO VIEW YAMAHA OEM PARTS, PLEASE SIGN IN

Important message:

Please correct the information below:

Existing Account:



Forgot your password? Click Here.

Quick Log In:



Note: Password must be at least 6 characters in length and is case sensitive.


PLEASE SELECT A SUBMODEL

Some OEM parts vary between different machine specifications and paint schemes.
Choose your machine's submodel to help with fitment.

Submodels
Placeholder
SELECT MACHINE

FUEL TANK

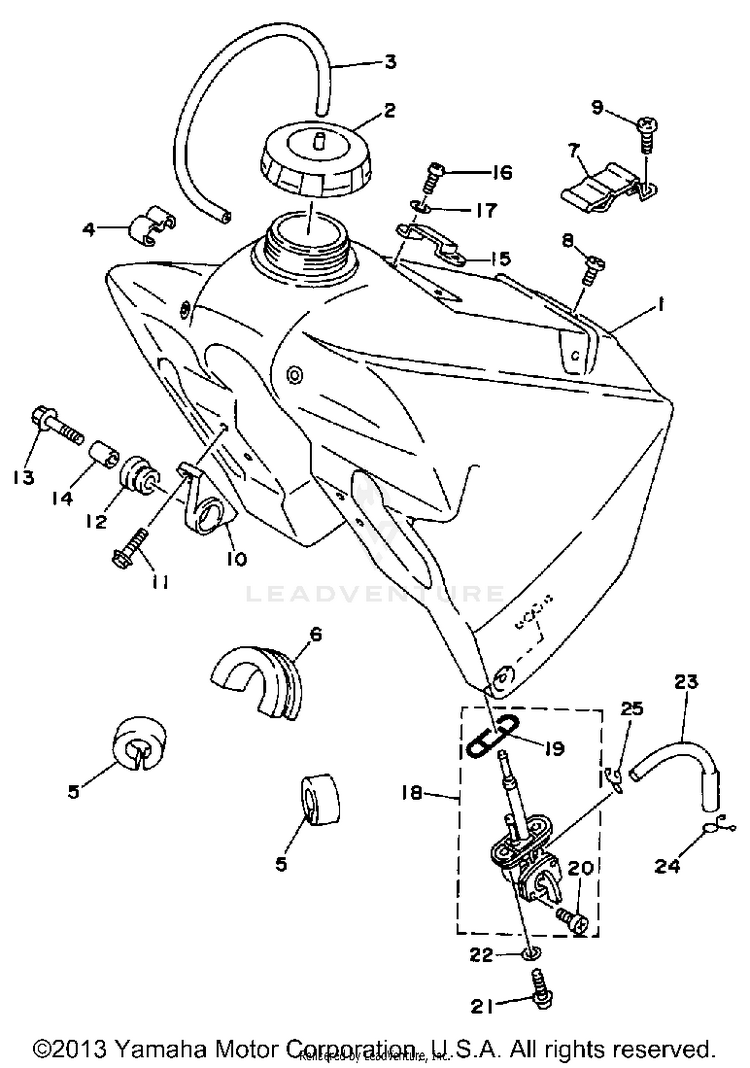

OEM Assembly Image

Click and drag to reposition image. Use mouse wheel to zoom in and out.

Shipping Notice
⚠ WARNING: Cancer and Reproductive Harm -

Get additional RM Cash on OEM purchases!

Select parts to add, then click
TagPart #DescriptionMSRPOur PriceStock StatusQtyAdd?
14BF-24110-01-00

(replaces part #
4BF-24110-00-00)

FUEL TANK COMP.$419.99$327.59Usually ships in 7-10 business days
25MV-24610-00-00

(replaces part #
1UY-24610-00-00)

CAP ASSY$63.99$49.916 In-Stock
35RB-24315-00-00

(replaces part #
90445-09304-00)

PIPE 5$8.49$6.6210+ In-Stock
490468-15064-00CLIP$10.49$8.182 In-Stock
53XJ-21717-00-00DAMPER, SIDE COVER$5.49$4.94Not Shipping
61LX-24181-00-00DAMPER, LOCATING 1$34.99$28.69Not Shipping
74BF-24173-00-00BAND, TNK FITTING 1$18.49$15.16Not Shipping
898980-06020-00SCREW, BIND$9.49$7.407 In-Stock
990149-06165-00SCREW$5.49$4.942 In-Stock
105XE-24144-00-00

(replaces part #
24X-24144-00-00)

HOLDER, DAMPER$25.99$20.2710+ In-Stock
1195027-06014-00

(replaces part #
95021-06014-00)

BOLT, FLANGE$0.95$0.825 In-Stock
1290480-18549-00

(replaces part #
90480-18354-00)

GROMMET$11.49$8.9610+ In-Stock
1390119-06214-00

(replaces part #
90119-06206-00)

BOLT, WITH WASHER$9.49$7.4010+ In-Stock
1490387-06387-00COLLAR$6.99$5.45Not Shipping
155X6-2412F-00-00BRACKET, SEAT$12.99$10.65Not Shipping
1697885-06012-00

(replaces part #
98580-06012-00)

SCREW, PAN HEAD$3.45$2.9710+ In-Stock
1792995-06100-00WASHER, SPRING$3.55$3.0510+ In-Stock
183BN-24500-00-00FUEL COCK ASSEMBLY 1$88.99$69.41Usually ships in 7-10 business days
