1992 Yamaha WR200 Front Wheel OEM Parts Diagram

Submodel WR200RD - 1992

Shop Aftermarket Parts

TO VIEW YAMAHA OEM PARTS, PLEASE SIGN IN

Important message:

Please correct the information below:

Existing Account:



Forgot your password? Click Here.

Quick Log In:



Note: Password must be at least 6 characters in length and is case sensitive.


PLEASE SELECT A SUBMODEL

Some OEM parts vary between different machine specifications and paint schemes.
Choose your machine's submodel to help with fitment.

Submodels
Placeholder
SELECT MACHINE

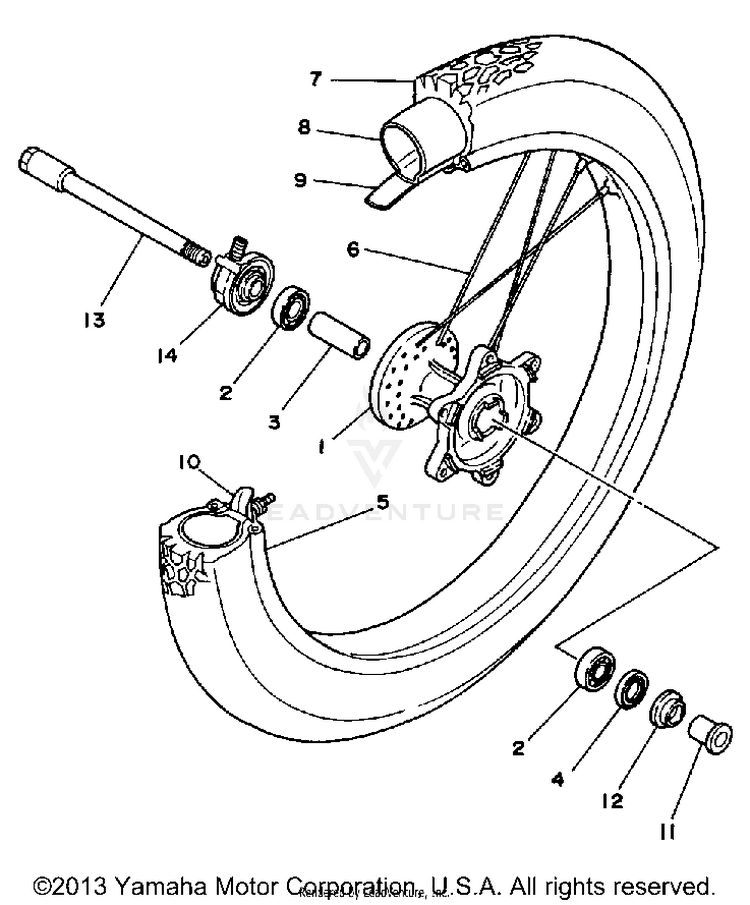

FRONT WHEEL

OEM Assembly Image

Click and drag to reposition image. Use mouse wheel to zoom in and out.

Shipping Notice
⚠ WARNING: Cancer and Reproductive Harm -

Get additional RM Cash on OEM purchases!

Select parts to add, then click
TagPart #DescriptionMSRPOur PriceStock StatusQtyAdd?
13XP-25111-00-35HUB, FRONT | SILVER$179.99$140.39Not Shipping
293306-20205-00

(replaces part #
93306-20209-00)

BEARING$42.99$33.5310+ In-Stock
390560-15290-00SPACER$20.99$16.372 In-Stock
493102-20281-00OIL SEAL (SD 20-35-5)$16.49$12.869 In-Stock
594416-21430-00RIM (1.60-21)$360.99$281.57Usually ships in 7-10 business days
655U-25104-00-00SPOKE SET, FRONT$136.99$106.85Not Shipping
794108-21012-00

(replaces part #
94108-217X2-00)

80/100-21 - 51M - M6 | DUNLOP$216.99$172.08Usually ships in 7-10 business days
894227-21123-00TUBE (MCS 2.75/3.00-21 TR6) | BRIDGESTONE$51.99$40.5510+ In-Stock
994330-21084-00

(replaces part #
94307-21145-00)

BAND, RIM (1.60-21) | DUNLOP$18.49$14.4210+ In-Stock
105X2-25394-00-00SPACER, BEAD$43.99$36.294 In-Stock
1190387-15600-00COLLAR$20.99$16.372 In-Stock
12322-25118-00-00COVER, HUB DUST$18.99$14.8110+ In-Stock
134GY-25181-00-00

(replaces part #
55U-25181-01-00)

AXLE, WHEEL$150.99$117.77Usually ships in 7-10 business days
143XP-25190-00-00GEAR UNIT ASSEMBLY$104.99$81.89Usually ships in 7-10 business days
