2007 Yamaha XT225 Serow Crankcase OEM Parts Diagram

Submodel XT225 CA - XT225WC - 2007

Shop Aftermarket Parts

TO VIEW YAMAHA OEM PARTS, PLEASE SIGN IN

Important message:

Please correct the information below:

Existing Account:



Forgot your password? Click Here.

Quick Log In:



Note: Password must be at least 6 characters in length and is case sensitive.


PLEASE SELECT A SUBMODEL

Some OEM parts vary between different machine specifications and paint schemes.
Choose your machine's submodel to help with fitment.

Submodels
Placeholder
SELECT MACHINE

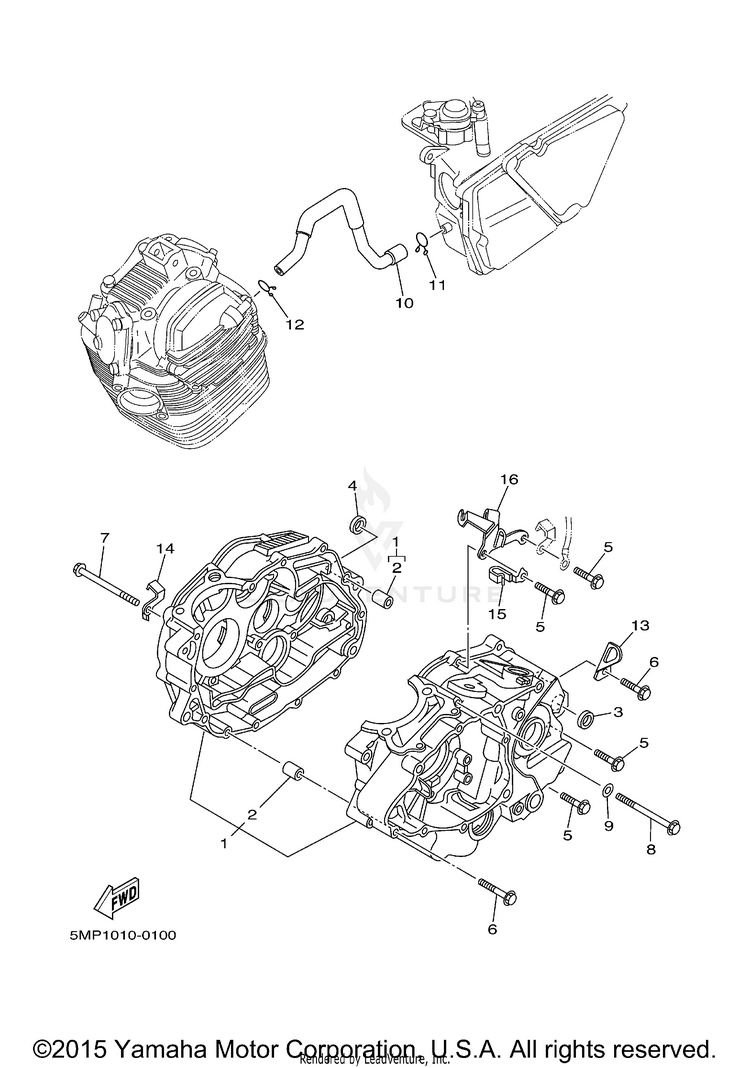

CRANKCASE

OEM Assembly Image

Click and drag to reposition image. Use mouse wheel to zoom in and out.

Shipping Notice
⚠ WARNING: Cancer and Reproductive Harm -

Get additional RM Cash on OEM purchases!

Select parts to add, then click
TagPart #DescriptionMSRPOur PriceStock StatusQtyAdd?
15RK-15100-00-00CRANKCASE ASSY$621.99$520.66Usually ships in 7-10 business days
299530-12016-00PIN, DOWEL$4.89$4.2110+ In-Stock
390387-125F1-00COLLAR$4.60$4.14Usually ships in 7-10 business days
490387-125F1-00COLLAR$4.60$4.14Usually ships in 7-10 business days
595027-06030-00BOLT, FLANGE$4.30$3.87Usually ships in 7-10 business days
695027-06040-00BOLT, FLANGE$3.55$3.0510+ In-Stock
795027-06090-00BOLT, FLANGE$2.80$2.418 In-Stock
895027-06085-00BOLT, FLANGE$10.49$8.1810+ In-Stock
990430-06014-00GASKET$8.99$7.0110+ In-Stock
105MP-11166-00-00PIPE, BREATHER 1$42.99$35.25Usually ships in 7-10 business days
1190467-14015-00CLIP$9.49$7.407 In-Stock
1290467-13133-00

(replaces part #
90467-13071-00)

CLIP$9.49$7.4010+ In-Stock
1390465-08020-00CLAMP$22.99$18.85Usually ships in 7-10 business days
1490462-08224-00CLAMP$4.20$3.78Usually ships in 7-10 business days
1590465-06376-00

(replaces part #
90465-08127-00)

CLAMP$10.49$8.184 In-Stock
164JG-15441-02-00HOLDER, CLUTCH CABLE$18.49$15.16Usually ships in 7-10 business days
