2007 Yamaha XT225 Serow Steering OEM Parts Diagram

Submodel XT225 CA - XT225WC - 2007

Shop Aftermarket Parts

TO VIEW YAMAHA OEM PARTS, PLEASE SIGN IN

Important message:

Please correct the information below:

Existing Account:



Forgot your password? Click Here.

Quick Log In:



Note: Password must be at least 6 characters in length and is case sensitive.


PLEASE SELECT A SUBMODEL

Some OEM parts vary between different machine specifications and paint schemes.
Choose your machine's submodel to help with fitment.

Submodels
Placeholder
SELECT MACHINE

STEERING

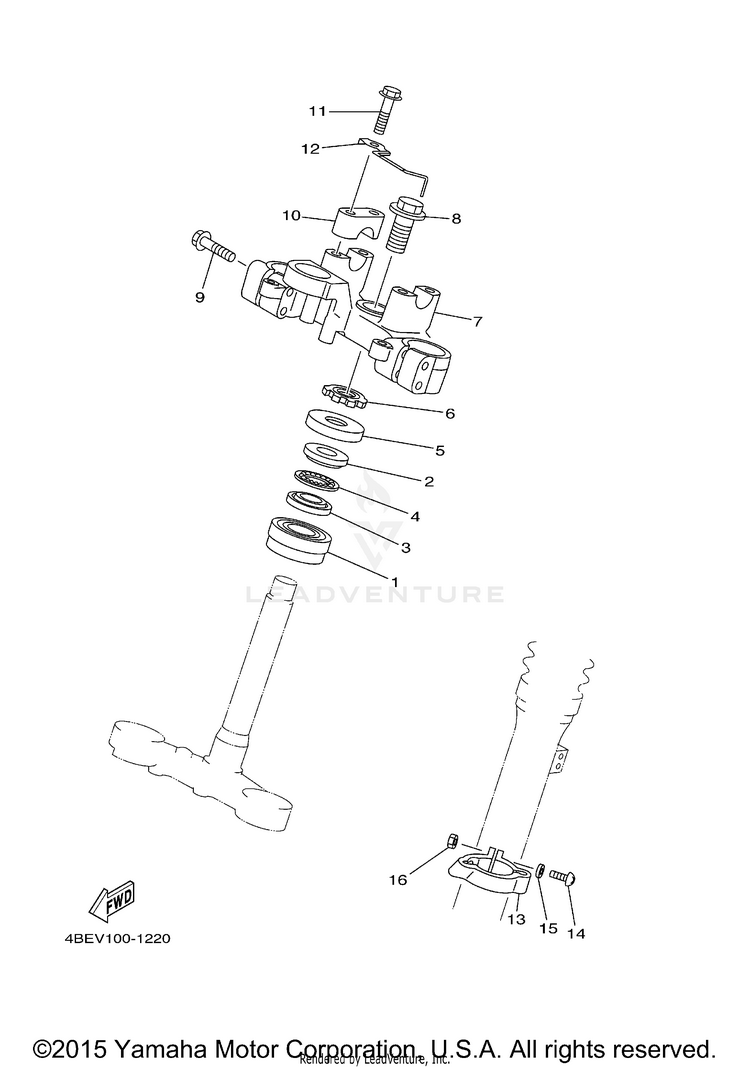

OEM Assembly Image

Click and drag to reposition image. Use mouse wheel to zoom in and out.

Shipping Notice
⚠ WARNING: Cancer and Reproductive Harm -

Get additional RM Cash on OEM purchases!

Select parts to add, then click
TagPart #DescriptionMSRPOur PriceStock StatusQtyAdd?
193332-00008-00BEARING$73.99$57.714 In-Stock
2BP2-23411-00-00

(replaces part #
22F-23411-01-00)

RACE, BALL 1$12.49$9.747 In-Stock
3BP2-23412-00-00

(replaces part #
22F-23412-01-00)

RACE, BALL 2$8.49$6.626 In-Stock
4BP2-2341E-00-00

(replaces part #
22F-2341E-00-00)

RETAINER, BALL BEARI$15.49$12.083 In-Stock
510V-23416-01-00COVER, BALL RACE 2$31.99$26.23Usually ships in 7-10 business days
690179-25004-00

(replaces part #
90179-25033-00)

NUT$26.99$21.055 In-Stock
74BE-23435-10-00CROWN, HANDLE$288.65$225.15Usually ships in 7-10 business days
890105-14329-00BOLT, FLANGE$13.49$11.06Usually ships in 7-10 business days
995027-08040-00BOLT, FLANGE$9.49$7.4010+ In-Stock
101E6-23441-10-35HOLDER, HANDLE UPPER | SL FOR PWS1$25.99$20.274 In-Stock
1195817-08035-00

(replaces part #
95827-08035-00)

BOLT, FLANGE$10.49$8.1810+ In-Stock
124BE-23389-00-00GUIDE, CABLE$31.11$25.51Usually ships in 7-10 business days
1334X-23317-00-00HOLDER, CABLE$7.49$5.845 In-Stock
1498507-05018-00SCREW, PAN HEAD$3.55$3.0510+ In-Stock
1592907-05600-00WASHER, PLATE$1.00$0.8610+ In-Stock
1695317-05600-00

(replaces part #
95307-05600-00)

NUT$2.50$2.153 In-Stock
