2007 Yamaha XT225 Serow Oil Pump OEM Parts Diagram

Submodel XT225 CA - XT225WC - 2007

Shop Aftermarket Parts

TO VIEW YAMAHA OEM PARTS, PLEASE SIGN IN

Important message:

Please correct the information below:

Existing Account:



Forgot your password? Click Here.

Quick Log In:



Note: Password must be at least 6 characters in length and is case sensitive.


PLEASE SELECT A SUBMODEL

Some OEM parts vary between different machine specifications and paint schemes.
Choose your machine's submodel to help with fitment.

Submodels
Placeholder
SELECT MACHINE

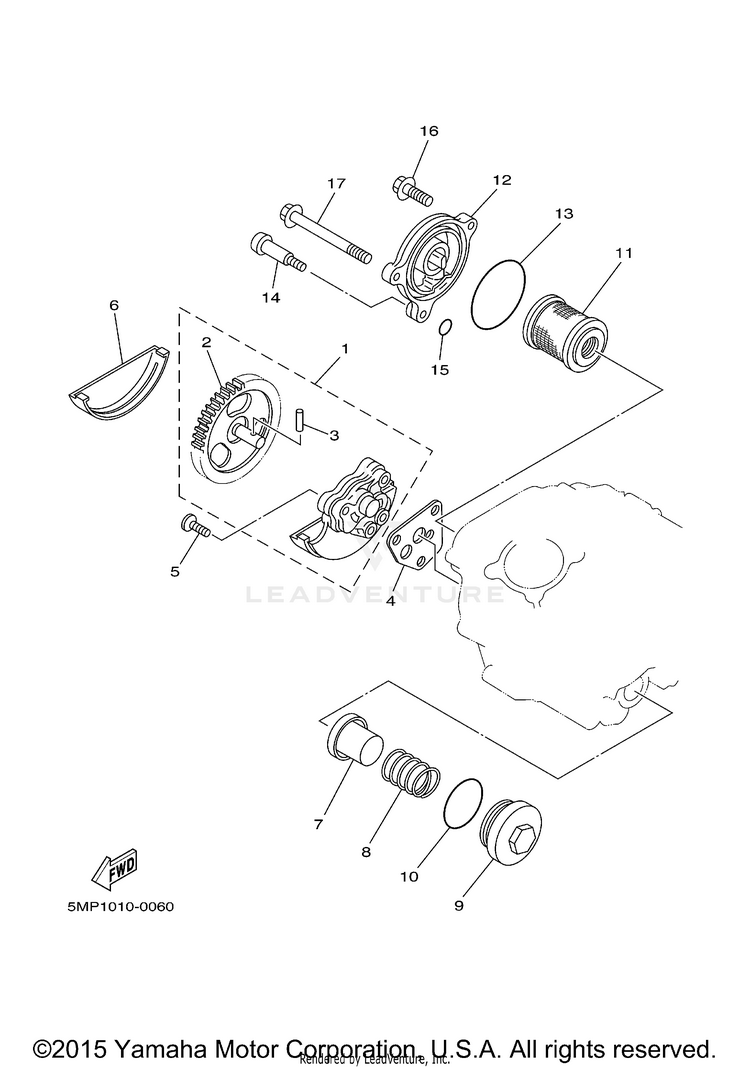

OIL PUMP

OEM Assembly Image

Click and drag to reposition image. Use mouse wheel to zoom in and out.

Shipping Notice
⚠ WARNING: Cancer and Reproductive Harm -

Get additional RM Cash on OEM purchases!

Select parts to add, then click
TagPart #DescriptionMSRPOur PriceStock StatusQtyAdd?
15H0-13300-02-00OIL PUMP ASSY$179.99$140.393 In-Stock
25H0-13326-01-00GEAR, PUMP DRIVEN 2 (45T)$43.99$36.07Usually ships in 7-10 business days
393603-12030-00PIN, PLUNGER$2.80$2.4110+ In-Stock
43GD-13329-00-00

(replaces part #
4BE-13329-01-00)

GASKET, PUMP COVER$8.49$6.62
598707-06030-00SCREW, FLAT HEAD$7.99$6.237 In-Stock
65H0-13327-00-00COVER, PUMP GEAR$35.99$29.51Usually ships in 7-10 business days
751Y-13411-00-00STRAINER, OIL$41.99$32.7510+ In-Stock
890501-18576-00SPRING, COMPRESSION$9.49$7.4010+ In-Stock
95H0-15351-00-00PLUG, DRAIN$34.99$27.2910+ In-Stock
1093210-347A1-00O-RING$8.49$6.6210+ In-Stock
115H0-13440-09-00

(replaces part #
5H0-13440-00-00)

ELEMENT ASSY, OIL CLEANER$11.49$9.9610+ In-Stock
AFTERMARKET ALTERNATIVE
$6.99$5.9910+ In-Stock
1215A-13447-01-00

(replaces part #
15A-13447-00-00)

COVER, OIL ELEMENT$32.99$27.05Usually ships in 7-10 business days
1393210-54175-00O-RING$13.99$10.9110+ In-Stock
1490109-06419-00BOLT$9.49$7.4010+ In-Stock
1593210-07135-00O-RING$6.99$5.4510+ In-Stock
AFTERMARKET ALTERNATIVE
$10.45$4.9910+ In-Stock
1695027-06025-00BOLT, FLANGE$4.16$3.5810+ In-Stock
1790105-065A1-00BOLT, FLANGE$4.50$3.878 In-Stock
