2007 Yamaha XT225 Serow Handle Switch Lever OEM Parts Diagram

Submodel XT225 CA - XT225WC - 2007

Shop Aftermarket Parts

TO VIEW YAMAHA OEM PARTS, PLEASE SIGN IN

Important message:

Please correct the information below:

Existing Account:



Forgot your password? Click Here.

Quick Log In:



Note: Password must be at least 6 characters in length and is case sensitive.


PLEASE SELECT A SUBMODEL

Some OEM parts vary between different machine specifications and paint schemes.
Choose your machine's submodel to help with fitment.

Submodels
Placeholder
SELECT MACHINE

HANDLE SWITCH LEVER

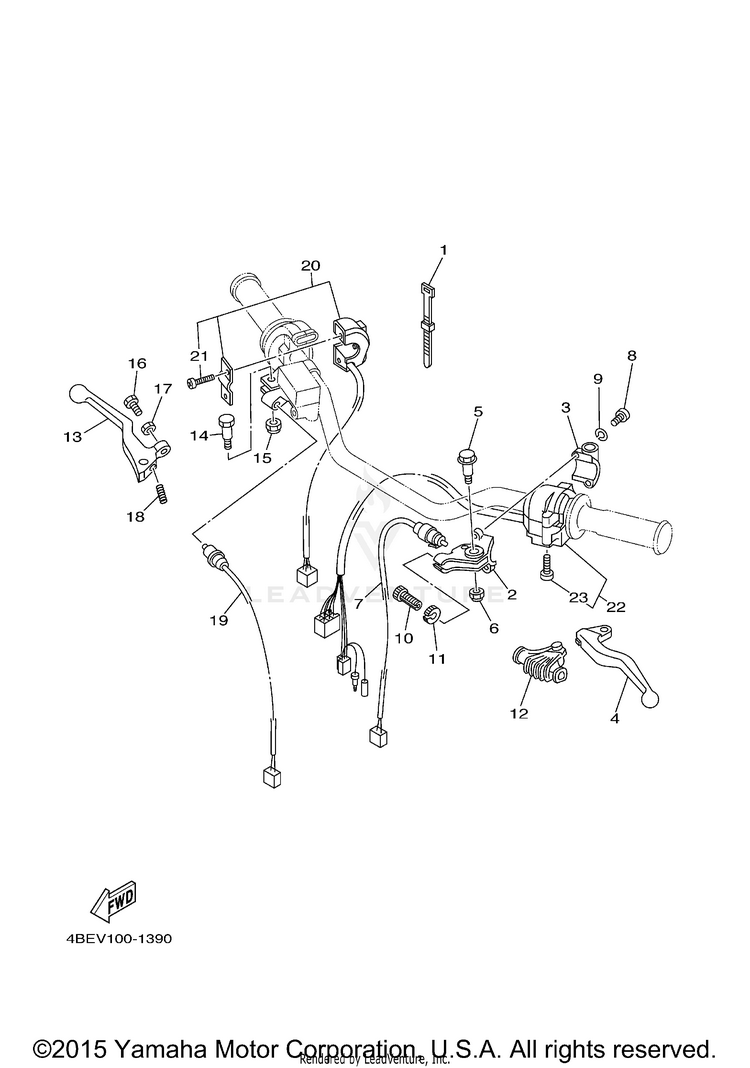

OEM Assembly Image

Click and drag to reposition image. Use mouse wheel to zoom in and out.

Shipping Notice
⚠ WARNING: Cancer and Reproductive Harm -

Get additional RM Cash on OEM purchases!

Select parts to add, then click
TagPart #DescriptionMSRPOur PriceStock StatusQtyAdd?
1437-83936-01-00BAND, SWITCH CORD$8.49$6.6210+ In-Stock
21LN-82911-00-00HOLDER, LEVER 1$44.99$35.092 In-Stock
333G-82913-01-00HOLDER, LEVER LOWER 1$21.99$17.159 In-Stock
423X-83912-02-00

(replaces part #
23X-83912-00-00)

LEVER 1$30.99$24.1710+ In-Stock
590109-06799-00BOLT$5.49$4.288 In-Stock
695617-06100-00

(replaces part #
95607-06100-00)

NUT, U$2.90$2.4910+ In-Stock
72UJ-82917-00-00

(replaces part #
5MP-82917-00-00)

SWITCH$61.99$48.35Usually ships in 7-10 business days
898517-05020-00

(replaces part #
98507-05020-00)

SCREW, PAN HEAD$1.75$1.503 In-Stock
992907-05100-00WASHER, SPRING$9.49$7.706 In-Stock
1090123-08002-00

(replaces part #
90123-08046-00)

BOLT$10.49$8.1810+ In-Stock
1190179-08030-00

(replaces part #
90179-08148-00)

NUT$10.49$8.1810+ In-Stock
121E6-26372-00-00COVER, HANDLE LEVER 1$25.99$20.272 In-Stock
1355Y-83922-02-00

(replaces part #
55Y-83922-00-00)

LEVER 2$41.99$32.756 In-Stock
1490109-06577-00BOLT$6.49$5.0610+ In-Stock
1595617-06100-00

(replaces part #
95607-06100-00)

NUT, U$2.90$2.4910+ In-Stock
1690149-06131-00SCREW$9.49$7.4010+ In-Stock
1790170-06010-00NUT$9.49$7.404 In-Stock
1890501-10312-00SPRING, COMPRESSION$9.49$7.405 In-Stock
195RK-83980-00-00FRONT STOP SWITCH ASSY$18.99$15.57Usually ships in 7-10 business days
205MP-83975-00-00SWITCH, HANDLE 2$118.99$92.81Usually ships in 7-10 business days
2198507-05018-00SCREW, PAN HEAD$3.55$3.0510+ In-Stock
223FW-83973-01-00SWITCH, HANDLE 3$163.99$127.91Not Shipping
2398517-05030-00

(replaces part #
98507-05030-00)

SCREW, PAN HEAD$11.49$8.962 In-Stock
