2007 Yamaha XT225 Serow Fender OEM Parts Diagram

Submodel XT225 CA - XT225WC - 2007

Shop Aftermarket Parts

TO VIEW YAMAHA OEM PARTS, PLEASE SIGN IN

Important message:

Please correct the information below:

Existing Account:



Forgot your password? Click Here.

Quick Log In:



Note: Password must be at least 6 characters in length and is case sensitive.


PLEASE SELECT A SUBMODEL

Some OEM parts vary between different machine specifications and paint schemes.
Choose your machine's submodel to help with fitment.

Submodels
Placeholder
SELECT MACHINE

FENDER

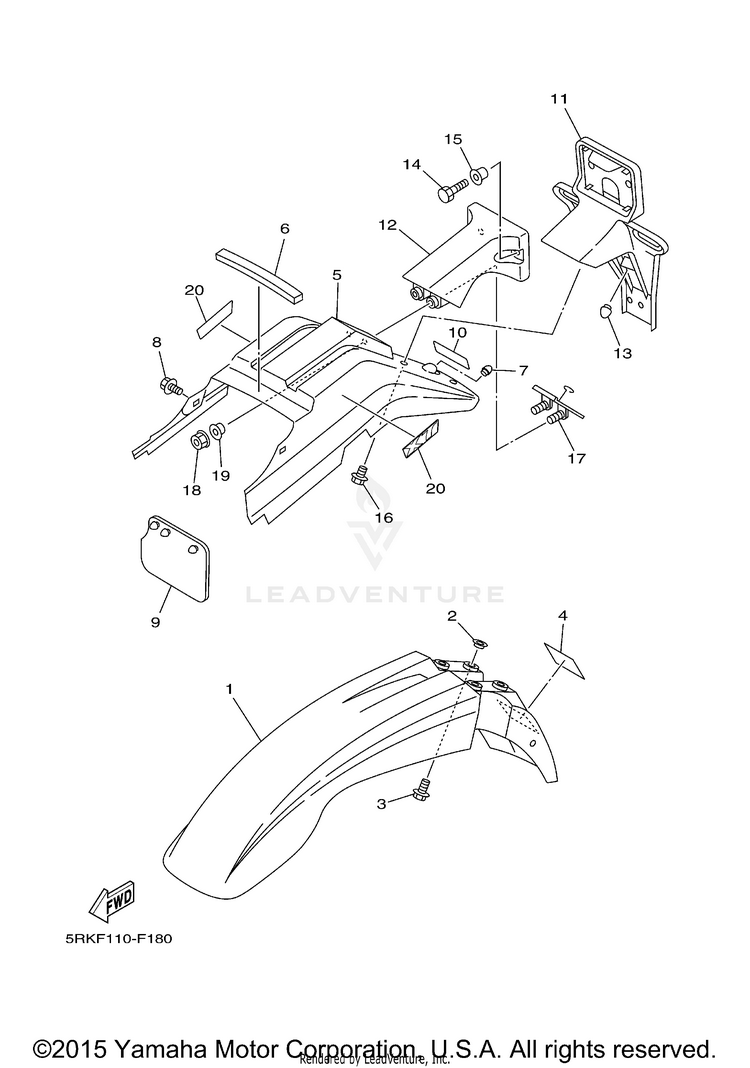

OEM Assembly Image

Click and drag to reposition image. Use mouse wheel to zoom in and out.

Shipping Notice
⚠ WARNING: Cancer and Reproductive Harm -

Get additional RM Cash on OEM purchases!

Select parts to add, then click
TagPart #DescriptionMSRPOur PriceStock StatusQtyAdd?
14BE-21511-10-00FENDER, FRONT$65.99$51.47Usually ships in 7-10 business days
290387-06681-00COLLAR$10.49$8.1810+ In-Stock
390119-06063-00BOLT, WITH WASHER$10.49$8.1810+ In-Stock
43TT-21668-00-00LABEL, TIRE$18.99$15.57Usually ships in 7-10 business days
53RW-21611-30-00FENDER, REAR$79.51$62.02Not Shipping
63RW-21639-00-00DAMPER 2$8.99$8.09Usually ships in 7-10 business days
790338-07018-00

(replaces part #
4G0-21639-00-00)

PLUG$8.49$6.625 In-Stock
890119-06152-00

(replaces part #
90119-06056-00)

BOLT, WITH WASHER$3.55$3.0510+ In-Stock
934X-21691-00-00FLAP$21.99$18.03Usually ships in 7-10 business days
103WF-2153E-71-00

(replaces part #
3WF-2153E-70-00)

EMBLEM, YAMAHA$5.49$4.94Usually ships in 7-10 business days
114BE-84551-00-00BRACKET, LICENSE$112.99$88.131 In-Stock
124BE-84527-00-00DAMPER$47.99$39.35Not Shipping
1342U-21639-00-00DAMPER 2$30.99$25.41Usually ships in 7-10 business days
1497017-06025-00

(replaces part #
97007-06025-00)

BOLT$4.55$3.9110+ In-Stock
1590387-07391-00

(replaces part #
90387-065G0-00)

COLLAR$10.49$8.1810+ In-Stock
1695817-06016-00

(replaces part #
95807-06016-00)

BOLT, FLANGE$1.95$1.6810+ In-Stock
174BE-21637-00-00CLAMP, WIRE$26.99$22.13Usually ships in 7-10 business days
1895317-06600-00

(replaces part #
95307-06600-00)

NUT$3.85$3.3110+ In-Stock
1990387-06681-00COLLAR$10.49$8.1810+ In-Stock
205RK-2163G-00-00EMBLEM 1$6.99$6.29Not Shipping
