2007 Yamaha XT225 Serow Exhaust OEM Parts Diagram

Submodel XT225 CA - XT225WC - 2007

Shop Aftermarket Parts

TO VIEW YAMAHA OEM PARTS, PLEASE SIGN IN

Important message:

Please correct the information below:

Existing Account:



Forgot your password? Click Here.

Quick Log In:



Note: Password must be at least 6 characters in length and is case sensitive.


PLEASE SELECT A SUBMODEL

Some OEM parts vary between different machine specifications and paint schemes.
Choose your machine's submodel to help with fitment.

Submodels
Placeholder
SELECT MACHINE

EXHAUST

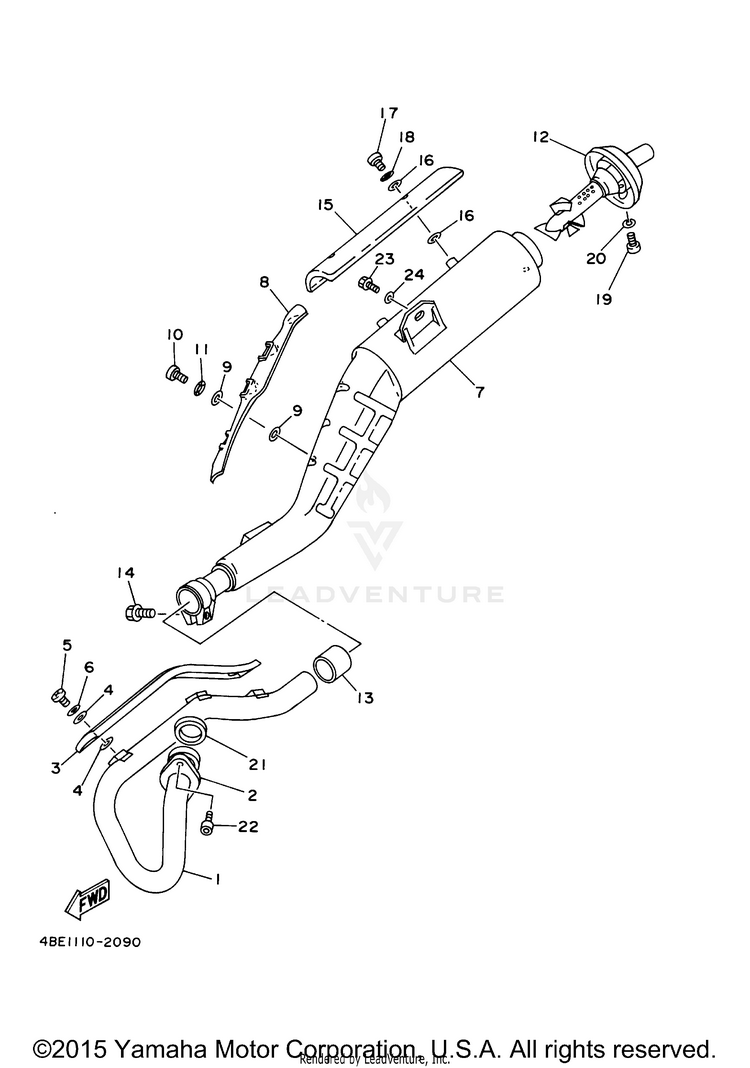

OEM Assembly Image

Click and drag to reposition image. Use mouse wheel to zoom in and out.

Shipping Notice
⚠ WARNING: Cancer and Reproductive Harm -

Get additional RM Cash on OEM purchases!

Select parts to add, then click
TagPart #DescriptionMSRPOur PriceStock StatusQtyAdd?
13RW-14611-00-00PIPE, EXHAUST 1$254.99$198.89Not Shipping
25H0-14612-01-00NUT, RING$17.99$14.033 In-Stock
33RW-14628-00-00PROTECTOR, EXHAUST PIPE$91.99$71.75Usually ships in 7-10 business days
44BD-14766-00-00WASHER, PROTECTOR$5.99$4.6710+ In-Stock
598980-06010-00SCREW, BIND$10.49$8.6310+ In-Stock
690206-06090-00WASHER, WAVE$9.49$7.4010+ In-Stock
74BE-14711-00-00MUFFLER 1$306.45$249.41Not Shipping
81KH-14728-01-00PROTECTOR, MUFFLER 2$38.99$31.97Usually ships in 7-10 business days
94BD-14766-00-00WASHER, PROTECTOR$5.99$4.6710+ In-Stock
1098907-06010-00SCREW, BIND$1.80$1.558 In-Stock
1190206-06090-00WASHER, WAVE$9.49$7.4010+ In-Stock
121RH-14752-01-00PIPE, OUTLET$153.99$120.11Usually ships in 7-10 business days
133YF-14714-00-00GASKET, MUFFLER$39.99$31.1910+ In-Stock
1495027-08025-00BOLT, FLANGE$10.49$8.184 In-Stock
153TB-14728-00-00PROTECTOR, MUFFLER 2$130.99$102.17Usually ships in 7-10 business days
164BD-14766-00-00WASHER, PROTECTOR$5.99$4.6710+ In-Stock
1798980-06010-00SCREW, BIND$10.49$8.6310+ In-Stock
1890206-06090-00WASHER, WAVE$9.49$7.4010+ In-Stock
1998507-06010-00SCREW, PAN HEAD$3.85$3.318 In-Stock
2092907-06100-00WASHER, SPRING$1.30$1.1210+ In-Stock
214BE-14613-00-00GASKET, EXHAUST PIPE$10.99$8.5710+ In-Stock
2291317-06020-00BOLT, HEX. SOCKET HEAD$2.75$2.3610+ In-Stock
2390109-085E2-00

(replaces part #
90109-082G0-00)

BOLT$8.49$6.6210+ In-Stock
2490201-08326-00WASHER, PLATE$9.49$7.4010+ In-Stock
