2007 Yamaha XT225 Serow Starting Motor OEM Parts Diagram

Submodel XT225 CA - XT225WC - 2007

Shop Aftermarket Parts

TO VIEW YAMAHA OEM PARTS, PLEASE SIGN IN

Important message:

Please correct the information below:

Existing Account:



Forgot your password? Click Here.

Quick Log In:



Note: Password must be at least 6 characters in length and is case sensitive.


PLEASE SELECT A SUBMODEL

Some OEM parts vary between different machine specifications and paint schemes.
Choose your machine's submodel to help with fitment.

Submodels
Placeholder
SELECT MACHINE

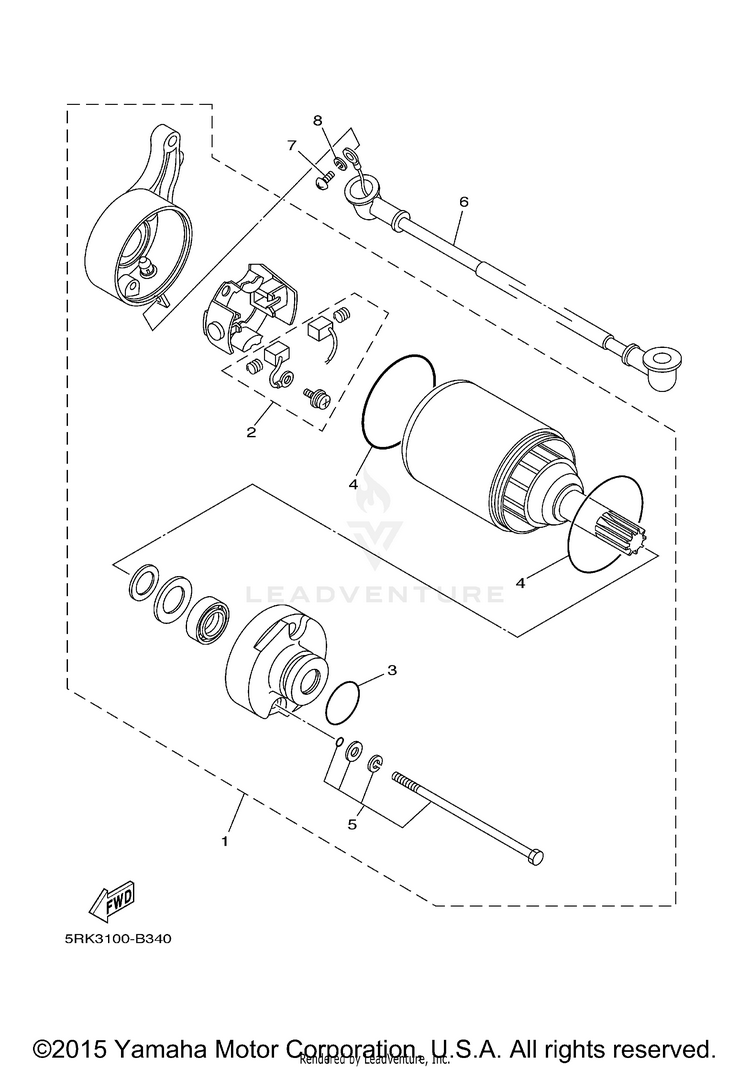

STARTING MOTOR

OEM Assembly Image

Click and drag to reposition image. Use mouse wheel to zoom in and out.

Shipping Notice
⚠ WARNING: Cancer and Reproductive Harm -

Get additional RM Cash on OEM purchases!

Select parts to add, then click
TagPart #DescriptionMSRPOur PriceStock StatusQtyAdd?
15RS-81890-01-00

(replaces part #
5RS-81890-00-00)

MOTOR ASSY$303.99$252.24Usually ships in 7-10 business days
23C5-81801-00-00

(replaces part #
50M-81801-M0-00)

BRUSH SET$25.99$20.272 In-Stock
393210-25711-00O-RING$8.49$6.6210+ In-Stock
493210-55669-00O-RING$9.49$7.403 In-Stock
559V-81828-M0-00SCREW SET$17.99$14.75Usually ships in 7-10 business days
63RW-8183G-00-00

(replaces part #
4JG-8183G-00-00)

CORD COMP.$34.99$28.69Not Shipping
798507-05008-00SCREW, PAN HEAD$3.85$3.3110+ In-Stock
892907-05100-00WASHER, SPRING$9.49$7.706 In-Stock
