2007 Yamaha XT225 Serow Shifter OEM Parts Diagram

Submodel XT225 CA - XT225WC - 2007

Shop Aftermarket Parts

TO VIEW YAMAHA OEM PARTS, PLEASE SIGN IN

Important message:

Please correct the information below:

Existing Account:



Forgot your password? Click Here.

Quick Log In:



Note: Password must be at least 6 characters in length and is case sensitive.


PLEASE SELECT A SUBMODEL

Some OEM parts vary between different machine specifications and paint schemes.
Choose your machine's submodel to help with fitment.

Submodels
Placeholder
SELECT MACHINE

SHIFTER

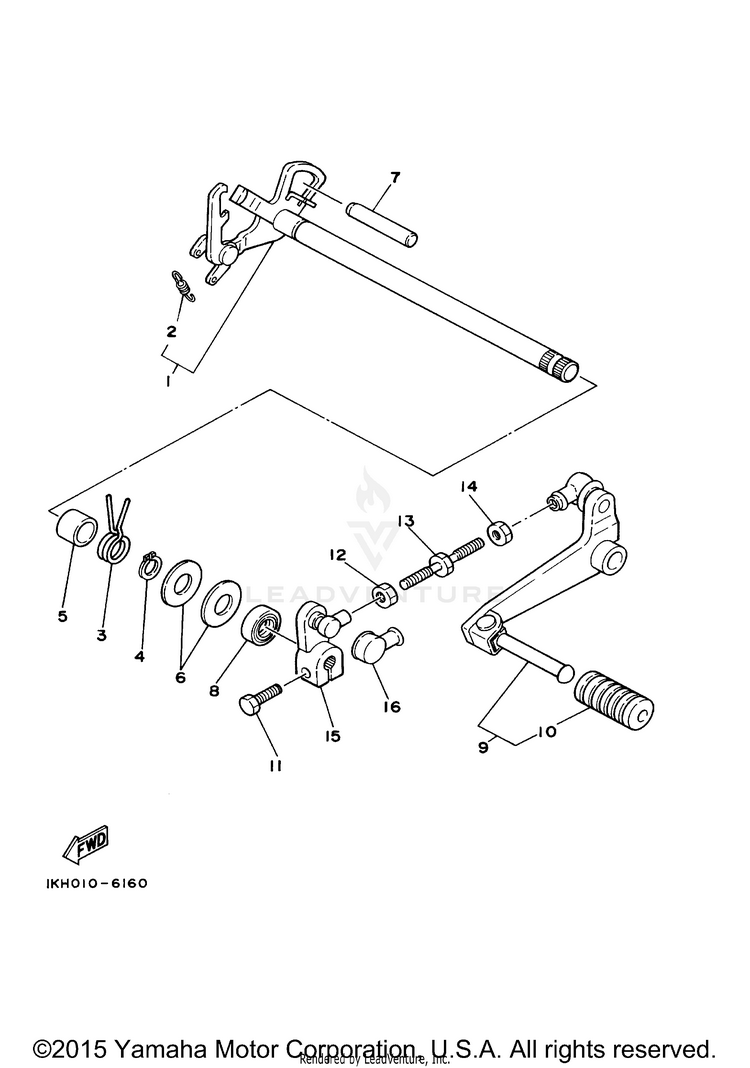

OEM Assembly Image

Click and drag to reposition image. Use mouse wheel to zoom in and out.

Shipping Notice
⚠ WARNING: Cancer and Reproductive Harm -

Get additional RM Cash on OEM purchases!

Select parts to add, then click
TagPart #DescriptionMSRPOur PriceStock StatusQtyAdd?
15H0-18120-02-00SHIFT LEVER ASSY$117.99$92.032 In-Stock
290506-08227-00SPRING, TENSION$4.55$3.913 In-Stock
390508-26705-00SPRING, TORSION$10.49$8.60Usually ships in 7-10 business days
499006-10600-00

(replaces part #
99001-10600-00)

CIRCLIP$10.49$8.1810+ In-Stock
590387-12033-00

(replaces part #
90387-124F4-00)

COLLAR$8.49$6.627 In-Stock
690201-12588-00WASHER, PLATE$8.49$6.624 In-Stock
793608-50158-00PIN, DOWEL$9.49$8.54Usually ships in 7-10 business days
893102-12106-00OIL SEAL (SD 12-22-5 HS)$12.49$9.7410+ In-Stock
91KH-18110-00-00SHIFT PEDAL ASSY$95.99$74.87Usually ships in 7-10 business days
101W6-18113-00-00COVER, SHIFT PEDAL$5.99$4.676 In-Stock
1197017-06020-00

(replaces part #
97027-06020-00)

BOLT$4.06$3.4910+ In-Stock
1295317-06700-00

(replaces part #
95307-06700-00)

NUT$9.49$7.402 In-Stock
1316G-18115-00-00ROD, SHIFT$15.99$13.11Not Shipping
1490170-06228-00

(replaces part #
90170-06289-00)

NUT (COUNTER CLOCKWISE)$10.49$8.18
151KH-18112-00-00ARM, SHIFT$47.99$39.35Not Shipping
162H9-18154-00-00COVER, DUST$5.99$4.768 In-Stock
