1982 Yamaha QT50 C - D - I - Magneto OEM Parts Diagram

Submodel QT50J - 1982

Shop Aftermarket Parts

TO VIEW YAMAHA OEM PARTS, PLEASE SIGN IN

Important message:

Please correct the information below:

Existing Account:



Forgot your password? Click Here.

Quick Log In:



Note: Password must be at least 6 characters in length and is case sensitive.


PLEASE SELECT A SUBMODEL

Some OEM parts vary between different machine specifications and paint schemes.
Choose your machine's submodel to help with fitment.

Submodels
Placeholder
SELECT MACHINE

C - D - I - MAGNETO

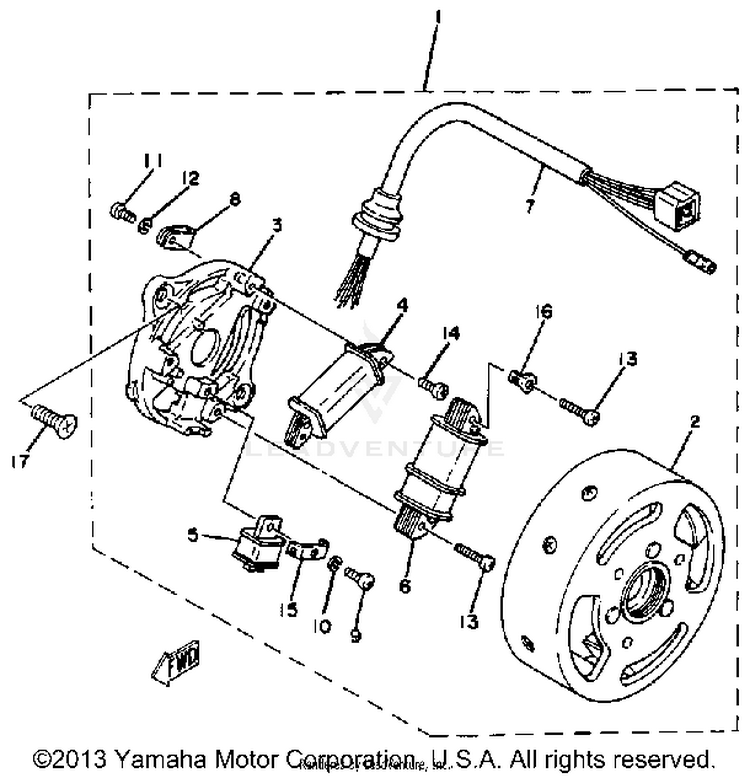

OEM Assembly Image

Click and drag to reposition image. Use mouse wheel to zoom in and out.

Shipping Notice
⚠ WARNING: Cancer and Reproductive Harm -

Get additional RM Cash on OEM purchases!

Select parts to add, then click
TagPart #DescriptionMSRPOur PriceStock StatusQtyAdd?
15U9-85500-M0-00CDI MAGNETO ASSEMBLY$112.99$88.13Not Shipping
23L8-85550-M0-00ROTOR ASSEMBLY$101.99$79.55Usually ships in 7-10 business days
33L5-85561-M1-00BASE, MAGNETO$131.99$102.95Usually ships in 7-10 business days
43T5-85520-M3-00

(replaces part #
3T5-85520-M1-00)

COIL, CHARGE$51.99$40.55Usually ships in 7-10 business days
53L5-85580-M0-00COIL, PULSER$76.99$60.05Usually ships in 7-10 business days
65N7-81313-M0-00COIL, LIGHTING 1$81.99$63.95Usually ships in 7-10 business days
73L8-8131X-M0-00CORD ASSEMBLY$34.82$28.55Usually ships in 7-10 business days
890461-05036-00CLAMP$2.95$2.66Usually ships in 7-10 business days
998580-04010-00SCREW, PAN HEAD$9.49$7.4010+ In-Stock
1092990-04100-00

(replaces part #
92901-04100-00)

WASHER, SPRING-$1.0210+ In-Stock
1198517-04006-00

(replaces part #
98511-04006-00)

SCREW, PAN HEAD$4.60$3.9610+ In-Stock
1292990-04100-00

(replaces part #
92901-04100-00)

WASHER, SPRING-$1.0210+ In-Stock
1398517-04025-00

(replaces part #
98511-04025-00)

SCREW, PAN HEAD$3.30$2.8410+ In-Stock
1498517-04012-00

(replaces part #
98511-04012-00)

SCREW,PANHEAD$4.20$3.6110+ In-Stock
152T4-85568-M1-00TERMINAL, EARTH 1$5.99$5.39Usually ships in 7-10 business days
162T4-85569-M1-00TERMINAL, EARTH 2$3.76$3.38Usually ships in 7-10 business days
1798707-06014-00

(replaces part #
98701-06014-00)

SCREW, FLAT HEAD$9.49$7.4010+ In-Stock
