1982 Yamaha QT50 Rear Arm - Suspension OEM Parts Diagram

Submodel QT50J - 1982

Shop Aftermarket Parts

TO VIEW YAMAHA OEM PARTS, PLEASE SIGN IN

Important message:

Please correct the information below:

Existing Account:



Forgot your password? Click Here.

Quick Log In:



Note: Password must be at least 6 characters in length and is case sensitive.


PLEASE SELECT A SUBMODEL

Some OEM parts vary between different machine specifications and paint schemes.
Choose your machine's submodel to help with fitment.

Submodels
Placeholder
SELECT MACHINE

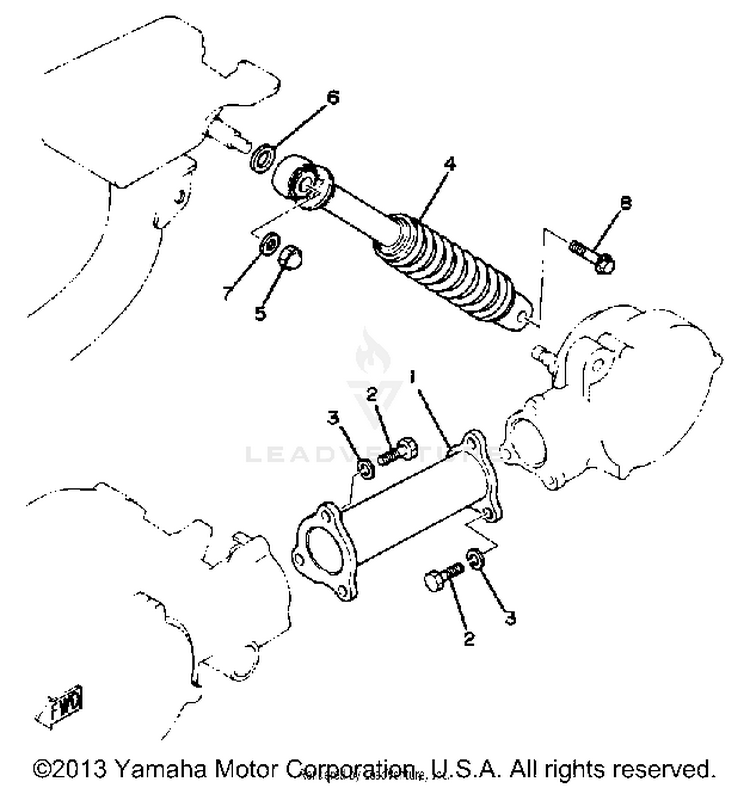

REAR ARM - SUSPENSION

OEM Assembly Image

Click and drag to reposition image. Use mouse wheel to zoom in and out.

Shipping Notice
⚠ WARNING: Cancer and Reproductive Harm -

Get additional RM Cash on OEM purchases!

Select parts to add, then click
TagPart #DescriptionMSRPOur PriceStock StatusQtyAdd?
13L5-22110-00-35REAR ARM | SILVER$93.99$73.31Usually ships in 7-10 business days
290101-08461-00BOLT$6.49$5.84Usually ships in 7-10 business days
392990-08100-00WASHER, SPRING$5.60$4.3710+ In-Stock
45U9-22210-01-00

(replaces part #
5U9-22210-00-00)

SHK/ABS ASY,REAR$103.99$81.11Usually ships in 7-10 business days
590176-08063-00

(replaces part #
90176-08023-00)

NUT, CROWN$8.49$7.64Usually ships in 7-10 business days
690201-126A7-00

(replaces part #
90201-12190-00)

WASHER, PLATE$10.49$8.1810+ In-Stock
790201-081R9-00

(replaces part #
90201-08753-00)

WASHER, PLATE$10.49$8.1810+ In-Stock
890105-08121-00BOLT, FLANGE$10.49$8.182 In-Stock
