1982 Yamaha QT50 Stand - Footrest OEM Parts Diagram

Submodel QT50J - 1982

Shop Aftermarket Parts

TO VIEW YAMAHA OEM PARTS, PLEASE SIGN IN

Important message:

Please correct the information below:

Existing Account:



Forgot your password? Click Here.

Quick Log In:



Note: Password must be at least 6 characters in length and is case sensitive.


PLEASE SELECT A SUBMODEL

Some OEM parts vary between different machine specifications and paint schemes.
Choose your machine's submodel to help with fitment.

Submodels
Placeholder
SELECT MACHINE

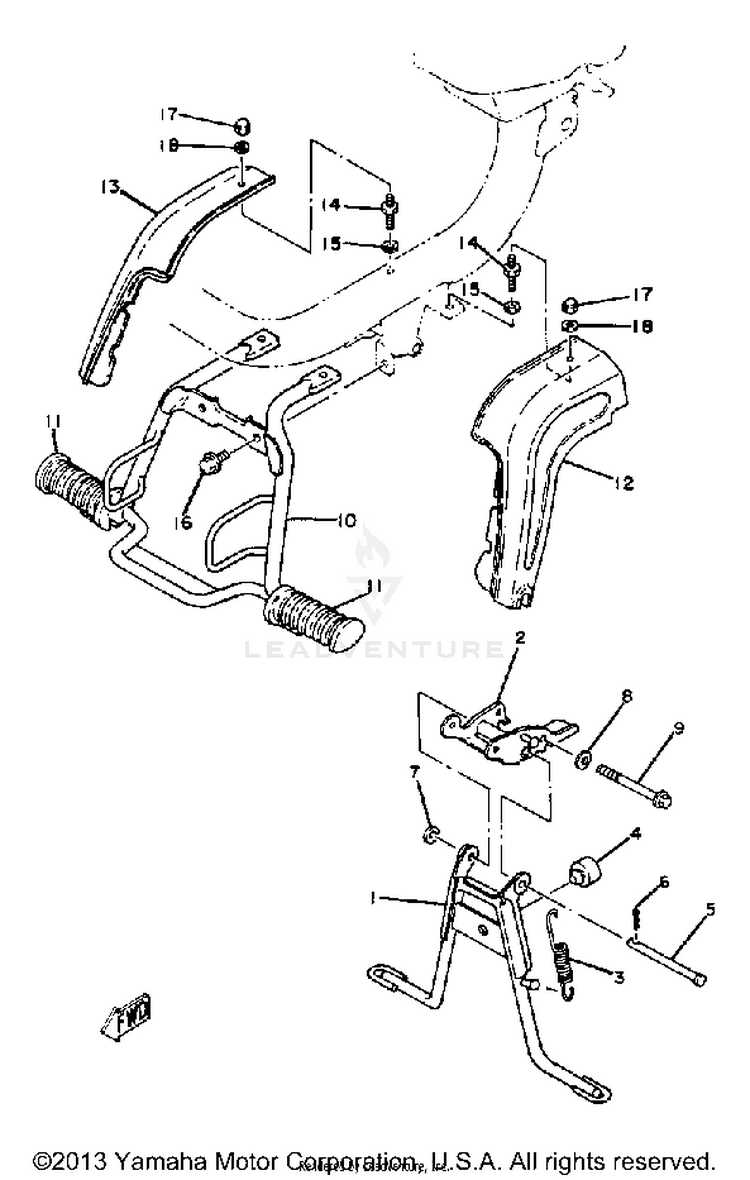

STAND - FOOTREST

OEM Assembly Image

Click and drag to reposition image. Use mouse wheel to zoom in and out.

Shipping Notice
⚠ WARNING: Cancer and Reproductive Harm -

Get additional RM Cash on OEM purchases!

Select parts to add, then click
TagPart #DescriptionMSRPOur PriceStock StatusQtyAdd?
14K6-27111-00-33STAND, MAIN | YAMAHA BLK$84.99$66.29Usually ships in 7-10 business days
24K6-27151-00-00BRACKET, MAIN STAND$55.99$43.67Usually ships in 7-10 business days
390506-29052-00SPRING, TENSION$12.49$9.743 In-Stock
4278-27114-00-00STOPPER, MAIN STAND$9.49$8.54Usually ships in 7-10 business days
591701-08080-00PIN, CLEVIS$1.40$1.26Not Shipping
690468-12006-00CLIP$9.49$7.404 In-Stock
792990-08600-00

(replaces part #
92901-08600-00)

WASHER, PLATE$2.80$2.7610+ In-Stock
890201-08104-00WASHER, PLATE$1.75$1.58Not Shipping
990105-06809-00

(replaces part #
90105-06301-00)

BOLT, FLANGE$2.35$2.023 In-Stock
103L5-27411-01-33FOOTREST 1 | YAMAHA BLK$122.99$95.93Not Shipping
11441-27413-01-00COVER, FOOTREST$18.99$15.57Usually ships in 7-10 business days
123L5-27453-00-00COVER, FOOTREST 1$29.99$24.59Not Shipping
133L5-27463-00-00COVER, FOOTREST 2$27.99$22.95Not Shipping
1490109-08528-00BOLT$4.50$4.05Usually ships in 7-10 business days
1592990-08600-00

(replaces part #
92901-08600-00)

WASHER, PLATE$2.80$2.7610+ In-Stock
1695817-08016-00

(replaces part #
95811-08016-00)

BOLT,FLANGE (JN5)$5.49$4.2810+ In-Stock
1795380-06800-00

(replaces part #
95303-06800-00)

NUT, CROWN$9.49$7.4010+ In-Stock
1892990-06200-00WASHER, PLAIN-$1.2810+ In-Stock
