1982 Yamaha QT50 Clutch OEM Parts Diagram

Submodel QT50J - 1982

Shop Aftermarket Parts

TO VIEW YAMAHA OEM PARTS, PLEASE SIGN IN

Important message:

Please correct the information below:

Existing Account:



Forgot your password? Click Here.

Quick Log In:



Note: Password must be at least 6 characters in length and is case sensitive.


PLEASE SELECT A SUBMODEL

Some OEM parts vary between different machine specifications and paint schemes.
Choose your machine's submodel to help with fitment.

Submodels
Placeholder
SELECT MACHINE

CLUTCH

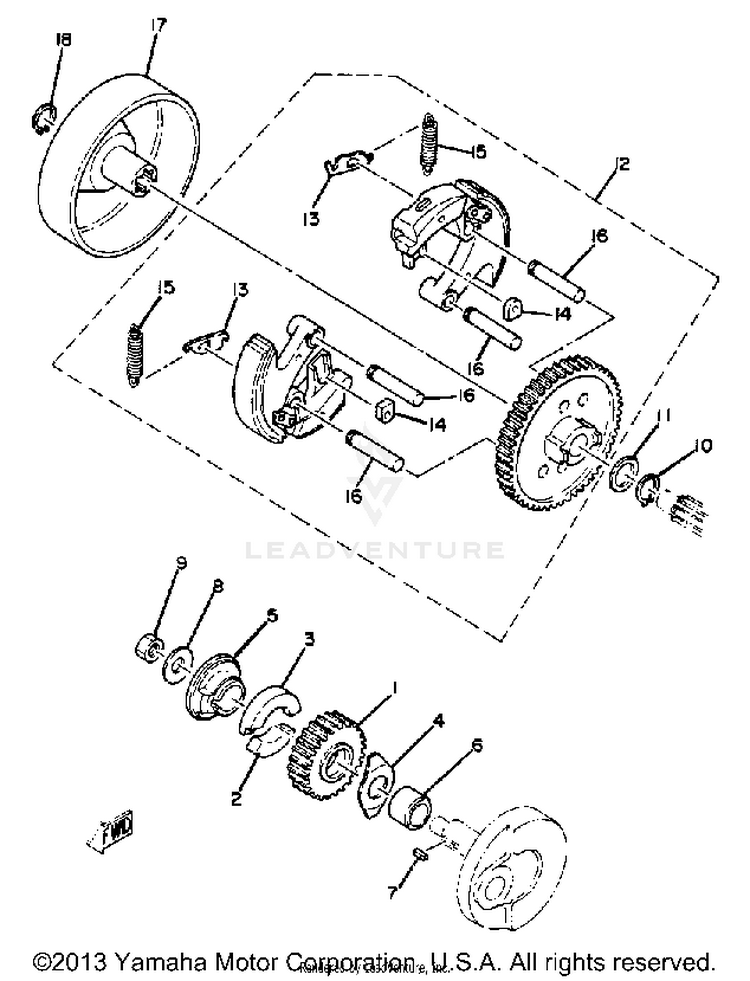

OEM Assembly Image

Click and drag to reposition image. Use mouse wheel to zoom in and out.

Shipping Notice
⚠ WARNING: Cancer and Reproductive Harm -

Get additional RM Cash on OEM purchases!

Select parts to add, then click
TagPart #DescriptionMSRPOur PriceStock StatusQtyAdd?
13L5-16111-00-00GEAR, PRIMARY DRIVE (33T)$138.99$108.41Usually ships in 7-10 business days
23L5-16115-00-00ABSORBER 1$5.99$4.6710+ In-Stock
33L5-16125-00-00ABSORBER 2$9.49$7.4010+ In-Stock
43L5-16114-00-00PLATE, THRUST 2$7.49$5.842 In-Stock
53L5-16181-01-00SPACER 1$43.99$34.318 In-Stock
690387-16730-00COLLAR$20.99$16.374 In-Stock
790282-05034-00KEY, STRAIGHT$10.49$8.187 In-Stock
890208-10012-00WASHER, CONICAL SPRING$18.49$14.425 In-Stock
995704-10500-00

(replaces part #
95701-10500-00)

NUT, WITH WASHER-$2.285 In-Stock
1099009-16400-00CIRCLIP$6.49$5.064 In-Stock
1190201-16383-00WASHER, PLATE$9.49$7.405 In-Stock
123L5-16620-04-00

(replaces part #
3L5-16620-03-00)

CLUTCH CARRIER ASSY$149.99$116.9910+ In-Stock
133L5-16628-02-00WASHER$10.99$8.574 In-Stock
142T4-16629-01-00

(replaces part #
2T4-16629-00-00)

DAMPER, CLUTCH WEIGHT$3.65$3.284 In-Stock
153L5-16627-02-00SPRING, CLUTCH WEIGHT 2$10.99$8.5710+ In-Stock
1636R-16633-00-00SHAFT, CLUTCH WEIGHT$7.99$7.19Not Shipping
173L5-16611-02-00CLUTCH HOUSING COMP.$153.99$120.115 In-Stock
1899009-16400-00CIRCLIP$6.49$5.064 In-Stock
