1982 Yamaha QT50 Taillight OEM Parts Diagram

Submodel QT50J - 1982

Shop Aftermarket Parts

TO VIEW YAMAHA OEM PARTS, PLEASE SIGN IN

Important message:

Please correct the information below:

Existing Account:



Forgot your password? Click Here.

Quick Log In:



Note: Password must be at least 6 characters in length and is case sensitive.


PLEASE SELECT A SUBMODEL

Some OEM parts vary between different machine specifications and paint schemes.
Choose your machine's submodel to help with fitment.

Submodels
Placeholder
SELECT MACHINE

TAILLIGHT

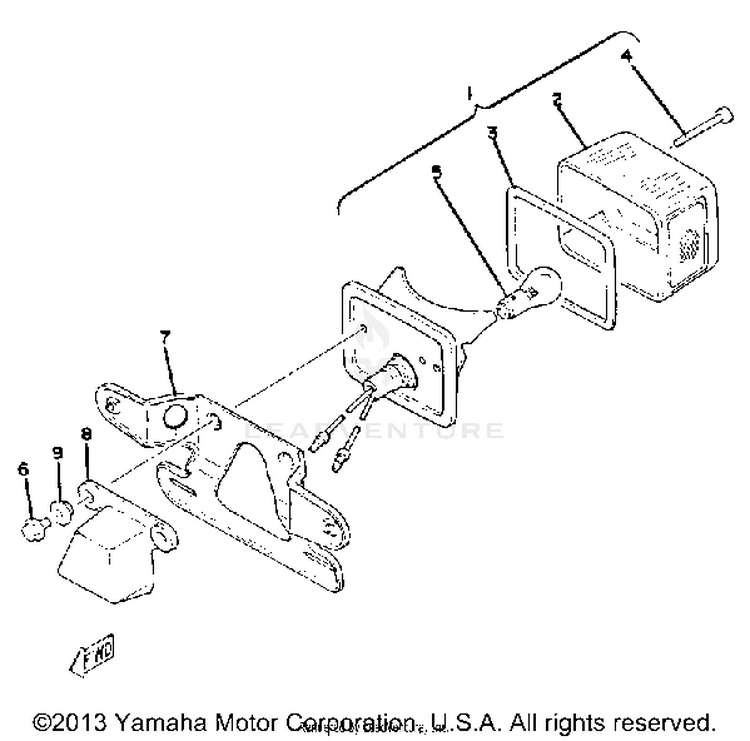

OEM Assembly Image

Click and drag to reposition image. Use mouse wheel to zoom in and out.

Shipping Notice
⚠ WARNING: Cancer and Reproductive Harm -

Get additional RM Cash on OEM purchases!

Select parts to add, then click
TagPart #DescriptionMSRPOur PriceStock StatusQtyAdd?
14L4-84510-61-00TAILLIGHT UNIT ASSEMBLY$75.99$59.27Usually ships in 7-10 business days
21M1-84521-60-00LENS, TAILLIGHT$43.99$34.315 In-Stock
31M1-84523-60-00GASKET, LENS$14.49$11.303 In-Stock
45BF-8433E-00-00

(replaces part #
1M1-84524-60-00)

SCREW, ADJUSTING$8.49$6.6210+ In-Stock
5122-84514-30-XX

(replaces part #
122-84514-30-00)

BULB 6V21CP(1154)$2.40$2.06Not Shipping
695817-06020-00

(replaces part #
95811-06020-00)

BOLT, FLANGE$3.50$3.0110+ In-Stock
73L8-84551-00-00BRACKET, LICENCE | SILVER$33.99$27.87Usually ships in 7-10 business days
83L8-84544-00-00COVER$16.99$13.93Usually ships in 7-10 business days
990387-06681-00COLLAR$10.49$8.1810+ In-Stock
