1982 Yamaha QT50 Intake OEM Parts Diagram

Submodel QT50J - 1982

Shop Aftermarket Parts

TO VIEW YAMAHA OEM PARTS, PLEASE SIGN IN

Important message:

Please correct the information below:

Existing Account:



Forgot your password? Click Here.

Quick Log In:



Note: Password must be at least 6 characters in length and is case sensitive.


PLEASE SELECT A SUBMODEL

Some OEM parts vary between different machine specifications and paint schemes.
Choose your machine's submodel to help with fitment.

Submodels
Placeholder
SELECT MACHINE

INTAKE

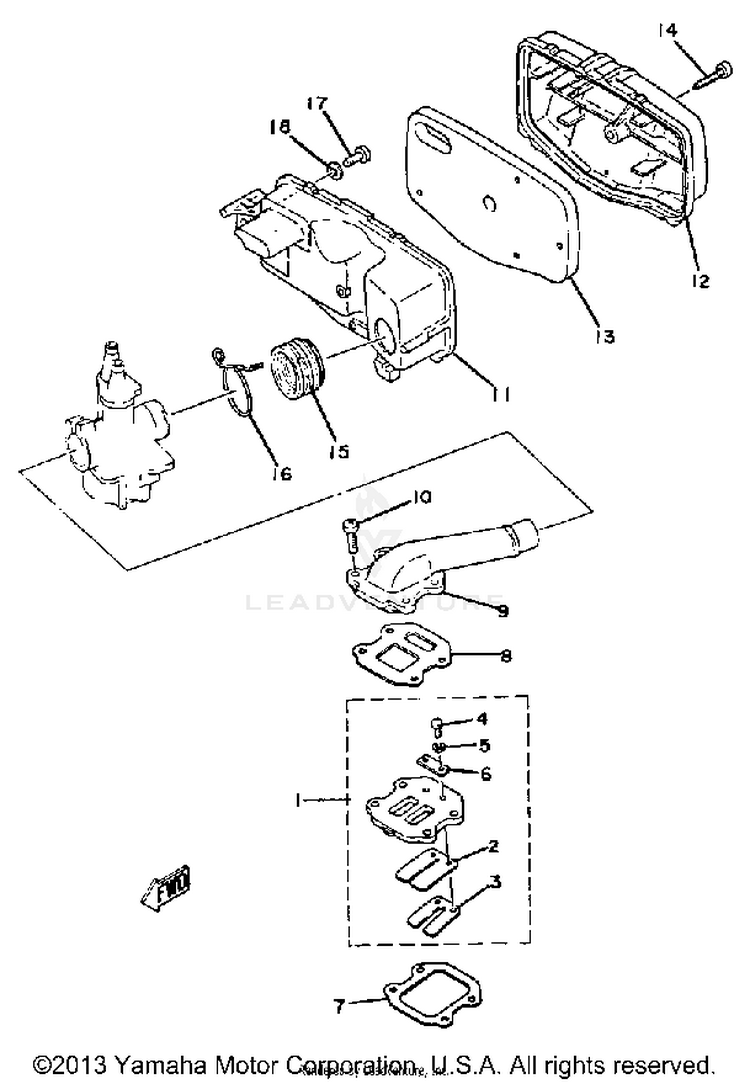

OEM Assembly Image

Click and drag to reposition image. Use mouse wheel to zoom in and out.

Shipping Notice
⚠ WARNING: Cancer and Reproductive Harm -

Get additional RM Cash on OEM purchases!

Select parts to add, then click
TagPart #DescriptionMSRPOur PriceStock StatusQtyAdd?
13L5-13610-00-00REED VALVE ASSY$88.99$69.4110+ In-Stock
23L5-13613-00-00REED, VALVE$46.99$36.655 In-Stock
33L5-13616-00-00STOPPER, REED VALVE$10.99$9.01Usually ships in 7-10 business days
498580-03010-00

(replaces part #
98502-03010-00)

SCREW, PAN HEAD$9.49$7.408 In-Stock
592990-03100-00WASHER, SPRING$9.49$7.4010+ In-Stock
63L5-13624-00-00PLATE, REED VALVE$7.49$5.841 In-Stock
73HK-13621-00-00GASKET, VALVE SEAT$22.99$17.9310+ In-Stock
83L5-13622-10-00GASKET, VALVE SEAT$31.99$24.957 In-Stock
93L5-13555-00-00MANIFOLD, INTAKE$71.99$56.15Usually ships in 7-10 business days
1098580-06020-00SCREW, PAN HEAD$9.49$7.405 In-Stock
113L5-W1441-00-00

(replaces part #
3L5-14411-00-00)

AIR FILT CASE ASSEMBLY (3L5-144$34.99$28.69Not Shipping
123L5-W1441-00-00AIR FILT CASE ASSEMBLY (3L5-144$34.99$28.69Not Shipping
133L5-14451-00-00ELEMENT, AIR CLNR$14.49$11.304 In-Stock
1497780-50130-00SCREW, TAPPING$8.49$7.64Usually ships in 7-10 business days
153L5-14453-01-00JOINT, AIR CLNR 1$50.99$39.77Usually ships in 7-10 business days
1690467-20023-00CLIP$6.49$5.0610+ In-Stock
1798507-06014-00

(replaces part #
98503-06014-00)

SCREW, PAN HEAD$9.49$7.4010+ In-Stock
1890201-06M08-00

(replaces part #
90201-06050-00)

WASHER, PLATE$2.55$2.197 In-Stock
