1982 Yamaha QT50 Rear Wheel OEM Parts Diagram

Submodel QT50J - 1982

Shop Aftermarket Parts

TO VIEW YAMAHA OEM PARTS, PLEASE SIGN IN

Important message:

Please correct the information below:

Existing Account:



Forgot your password? Click Here.

Quick Log In:



Note: Password must be at least 6 characters in length and is case sensitive.


PLEASE SELECT A SUBMODEL

Some OEM parts vary between different machine specifications and paint schemes.
Choose your machine's submodel to help with fitment.

Submodels
Placeholder
SELECT MACHINE

REAR WHEEL

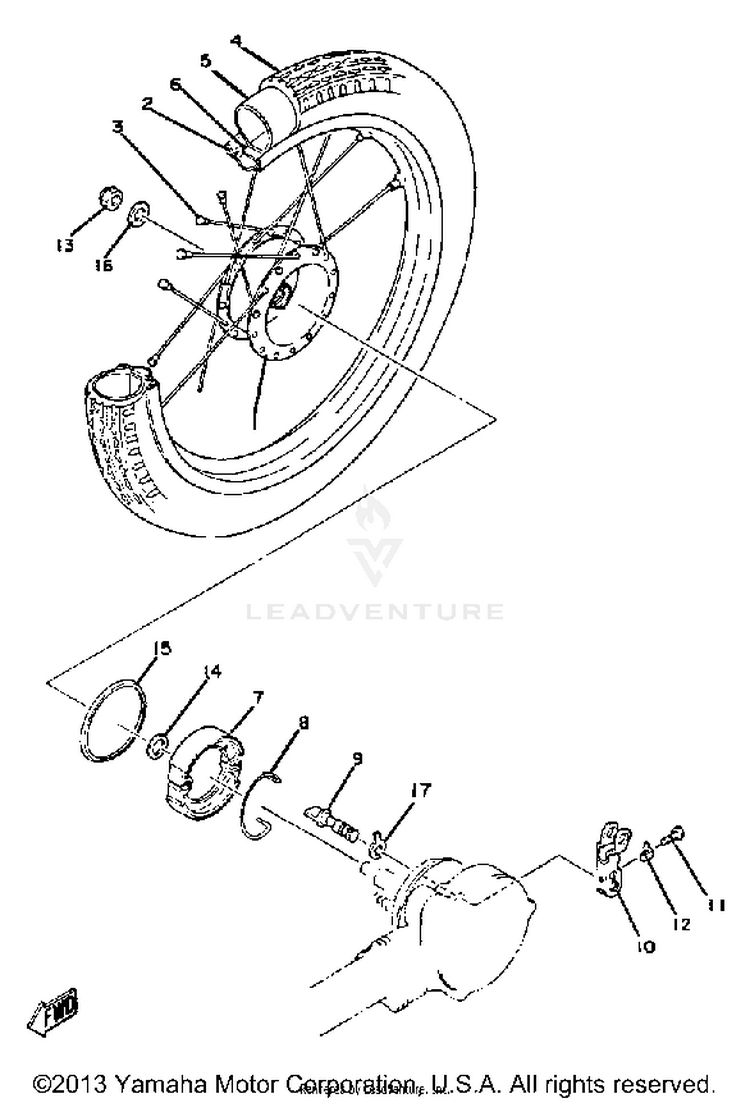

OEM Assembly Image

Click and drag to reposition image. Use mouse wheel to zoom in and out.

Shipping Notice
⚠ WARNING: Cancer and Reproductive Harm -

Get additional RM Cash on OEM purchases!

Select parts to add, then click
TagPart #DescriptionMSRPOur PriceStock StatusQtyAdd?
13L5-25311-01-35HUB, REAR$76.99$60.05Usually ships in 7-10 business days
294412-14261-00RIM 1.20X14$83.99$65.51Usually ships in 7-10 business days
34J2-25304-00-00

(replaces part #
3L5-25104-01-00)

SPOKE SET, REAR$47.99$39.35Not Shipping
494122-14461-00225X14 IRC REAR$95.99$74.87Usually ships in 7-10 business days
594220-14143-00TUBE (2.50-14 TR4)$39.99$33.693 In-Stock
695320-14096-00UNAVAILABLE IN PRICE BOOK (2.00$0.00$0.00Not Shipping
72E9-W2535-00-00BRAKESHOE SET-2PCS$7.99$6.23Not Shipping
82E9-25133-00-00SPRING, RETURN$8.49$6.623 In-Stock
93L5-25351-00-00CAMSHAFT$39.99$32.79Usually ships in 7-10 business days
103L5-25355-00-00LEVER, CAMSHAFT$34.99$28.69Usually ships in 7-10 business days
1190101-05396-00BOLT$8.49$6.622 In-Stock
122E9-25412-00-00WASHER$8.49$6.621 In-Stock
1390185-12134-00

(replaces part #
90185-12080-00)

NUT, SELF-LOCKING$13.49$10.524 In-Stock
1490201-154E8-00WASHER, PLATE (T=1.0)$9.49$7.4010+ In-Stock
153L5-25185-00-00

(replaces part #
3L5-25336-01-00)

RING 1$13.49$11.06Not Shipping
1690201-12699-00WASHER, PLATE$8.49$7.64Usually ships in 7-10 business days
173L8-2513A-00-00PLATE, INDICATOR$8.49$7.642 In-Stock
