1982 Yamaha QT50 Handle Switch - Lever OEM Parts Diagram

Submodel QT50J - 1982

Shop Aftermarket Parts

TO VIEW YAMAHA OEM PARTS, PLEASE SIGN IN

Important message:

Please correct the information below:

Existing Account:



Forgot your password? Click Here.

Quick Log In:



Note: Password must be at least 6 characters in length and is case sensitive.


PLEASE SELECT A SUBMODEL

Some OEM parts vary between different machine specifications and paint schemes.
Choose your machine's submodel to help with fitment.

Submodels
Placeholder
SELECT MACHINE

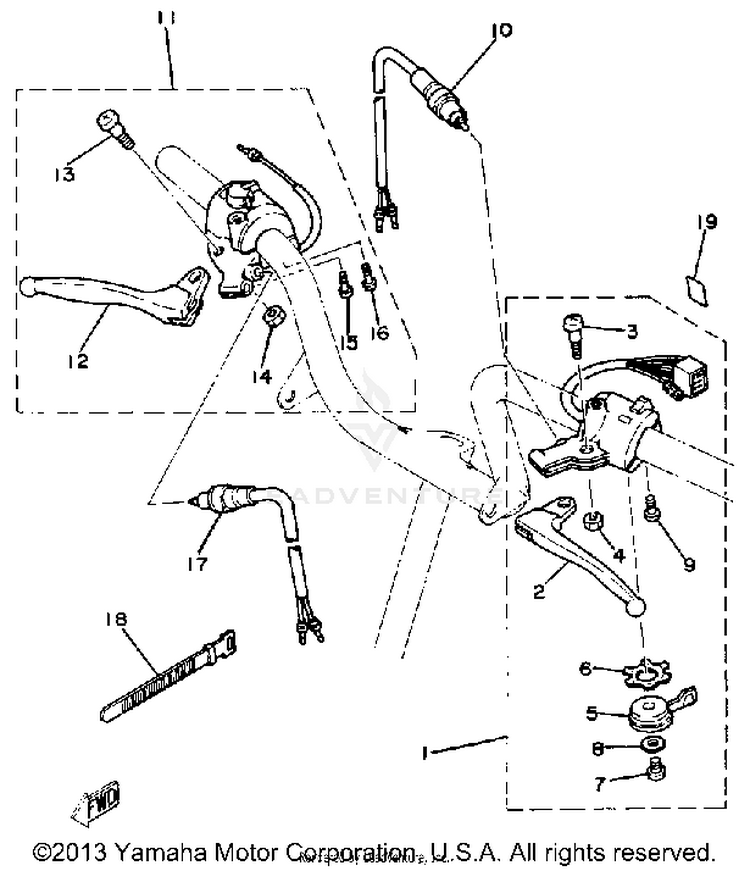

HANDLE SWITCH - LEVER

OEM Assembly Image

Click and drag to reposition image. Use mouse wheel to zoom in and out.

Shipping Notice
⚠ WARNING: Cancer and Reproductive Harm -

Get additional RM Cash on OEM purchases!

Select parts to add, then click
TagPart #DescriptionMSRPOur PriceStock StatusQtyAdd?
13L8-W8271-01-00LEVER HOLDER ASSEMBLY.L (3L8-W8$108.99$85.01Usually ships in 7-10 business days
2137-83912-02-38LEVER L | CLEAR BUFF$30.99$24.174 In-Stock
390149-05120-00SCREW, SPEC''L SHAPE$10.49$8.604 In-Stock
495617-05100-00

(replaces part #
95601-05100-00)

NUT, U$10.49$8.1810+ In-Stock
53LA-83941-00-00

(replaces part #
439-83941-02-00)

LEVER, STARTER$9.49$8.54Usually ships in 7-10 business days
690209-10131-00WASHER$10.49$8.60Usually ships in 7-10 business days
797885-06008-00

(replaces part #
98580-06008-00)

SCREW, PAN HEAD$1.20$1.032 In-Stock
890201-061A5-00WASHER, PLATE$8.49$6.6210+ In-Stock
998580-05020-00SCREW, PAN HEAD$1.55$1.356 In-Stock
103E1-83980-09-00

(replaces part #
3E1-83980-02-00)

FRONT STOP SWITCH AS$39.99$32.79Usually ships in 7-10 business days
113L8-W8292-31-00LEVER HOLDER ASSEMBLY R$52.66$41.07Not Shipping
122N3-83922-00-00LEVER R | CLEAR BUFF$33.99$26.513 In-Stock
1390149-05120-00SCREW, SPEC''L SHAPE$10.49$8.604 In-Stock
1495617-05100-00

(replaces part #
95601-05100-00)

NUT, U$10.49$8.1810+ In-Stock
1598580-05020-00SCREW, PAN HEAD$1.55$1.356 In-Stock
1698517-05030-00

(replaces part #
98501-05030-00)

SCREW, PAN HEAD$11.49$8.962 In-Stock
173E1-83980-09-00

(replaces part #
3E1-83980-02-00)

FRONT STOP SWITCH AS$39.99$32.79Usually ships in 7-10 business days
18437-83936-01-00BAND, SWITCH CORD$8.49$6.6210+ In-Stock
193L8-26139-00-00LABEL, CHOKE$6.99$6.29Usually ships in 7-10 business days
