1982 Yamaha QT50 Flasher Light OEM Parts Diagram

Submodel QT50J - 1982

Shop Aftermarket Parts

TO VIEW YAMAHA OEM PARTS, PLEASE SIGN IN

Important message:

Please correct the information below:

Existing Account:



Forgot your password? Click Here.

Quick Log In:



Note: Password must be at least 6 characters in length and is case sensitive.


PLEASE SELECT A SUBMODEL

Some OEM parts vary between different machine specifications and paint schemes.
Choose your machine's submodel to help with fitment.

Submodels
Placeholder
SELECT MACHINE

FLASHER LIGHT

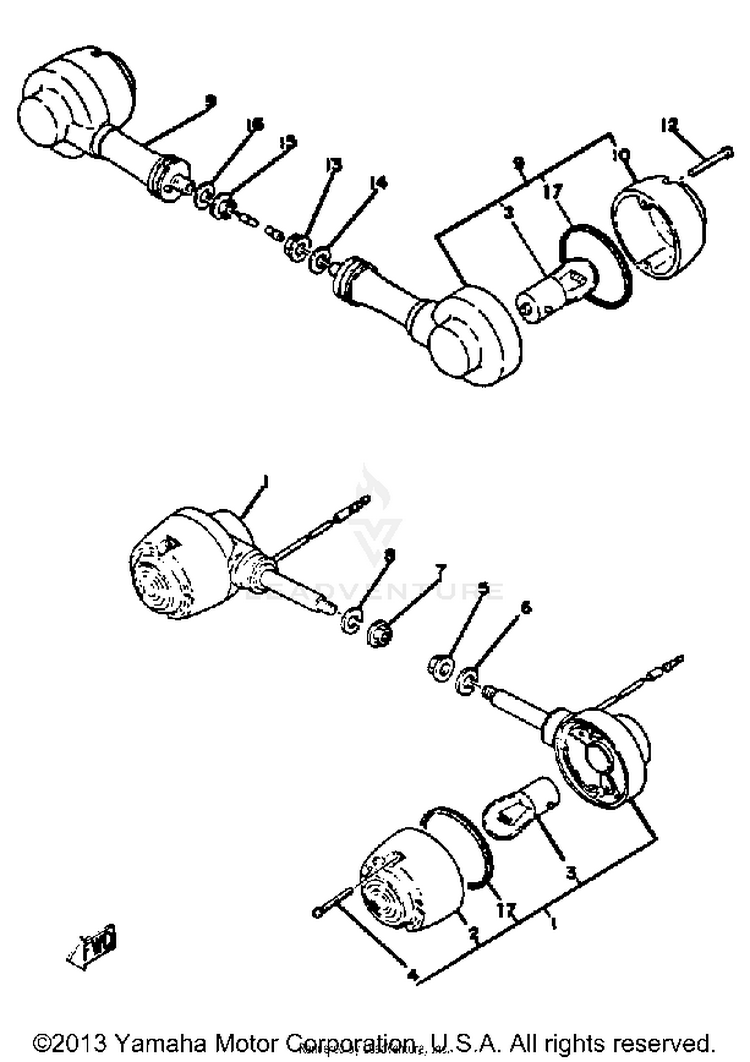

OEM Assembly Image

Click and drag to reposition image. Use mouse wheel to zoom in and out.

Shipping Notice
⚠ WARNING: Cancer and Reproductive Harm -

Get additional RM Cash on OEM purchases!

Select parts to add, then click
TagPart #DescriptionMSRPOur PriceStock StatusQtyAdd?
13L9-83310-60-00FRT FLSHR LITE ASSEMBLYASSY 1$53.99$42.11Usually ships in 7-10 business days
23L8-83312-60-00LENS, FLASHER$8.99$8.09Not Shipping
3115-83311-60-XX

(replaces part #
115-83311-60-00)

BULB 6V21CP(1129)-$9.6010+ In-Stock
497780-40535-00SCREW, TAPPING (FJ1)$3.20$2.88Not Shipping
595303-08800-00NUT (CROWN) (93501-08800-00)$10.49$8.184 In-Stock
692990-08100-00WASHER, SPRING$5.60$4.3710+ In-Stock
795303-08800-00NUT (CROWN) (93501-08800-00)$10.49$8.184 In-Stock
892990-08100-00WASHER, SPRING$5.60$4.3710+ In-Stock
93L8-83330-60-00R FLSHR LITE ASSEMBLY$66.99$52.25Usually ships in 7-10 business days
103L8-83312-60-00LENS, FLASHER$8.99$8.09Not Shipping
11115-83311-60-XX

(replaces part #
115-83311-60-00)

BULB 6V21CP(1129)-$9.6010+ In-Stock
1297780-40535-00SCREW, TAPPING (FJ1)$3.20$2.88Not Shipping
1395314-10600-00

(replaces part #
95303-10600-00)

NUT$2.55$2.19
1492990-10100-00WASHER, SPRING$3.25$2.806 In-Stock
1595314-10600-00

(replaces part #
95303-10600-00)

NUT$2.55$2.19
1692990-10100-00WASHER, SPRING$3.25$2.806 In-Stock
17183-83313-70-00GASKET, FLSHR LENS$9.49$8.54Usually ships in 7-10 business days
