1982 Yamaha QT50 Cylinder OEM Parts Diagram

Submodel QT50J - 1982

Shop Aftermarket Parts

TO VIEW YAMAHA OEM PARTS, PLEASE SIGN IN

Important message:

Please correct the information below:

Existing Account:



Forgot your password? Click Here.

Quick Log In:



Note: Password must be at least 6 characters in length and is case sensitive.


PLEASE SELECT A SUBMODEL

Some OEM parts vary between different machine specifications and paint schemes.
Choose your machine's submodel to help with fitment.

Submodels
Placeholder
SELECT MACHINE

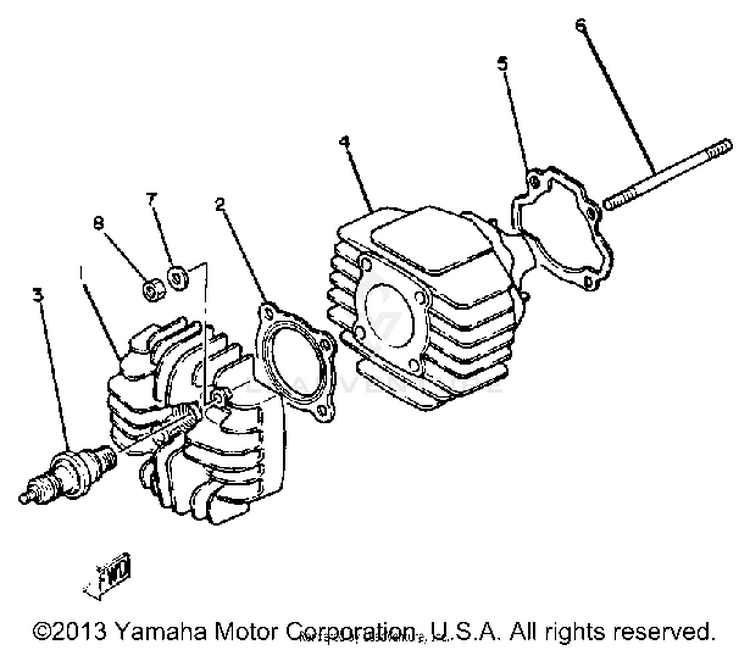

CYLINDER

OEM Assembly Image

Click and drag to reposition image. Use mouse wheel to zoom in and out.

Shipping Notice
⚠ WARNING: Cancer and Reproductive Harm -

Get additional RM Cash on OEM purchases!

Select parts to add, then click
TagPart #DescriptionMSRPOur PriceStock StatusQtyAdd?
-95780-06500-00

(replaces part #
95701-06500-00)

NUT, FLANGE | 5920~$2.95$2.5410+ In-Stock
13L5-11111-02-00HEAD, CYLINDER 1$196.99$153.65Usually ships in 7-10 business days
2517-11181-01-00

(replaces part #
517-11181-00-00)

GASKET, CYLINDER HEAD 1$7.49$5.8410+ In-Stock
3BPR-4HS00-00-00

(replaces part #
NGK-BP4HS-00-00)

BPR4HS NGK SPLUG 1 | U.R.-$4.9510+ In-Stock
43L5-11311-01-00CYLINDER 1$242.99$189.53Usually ships in 7-10 business days
53PT-11351-00-00GASKET, CYLINDER$10.99$10.3210+ In-Stock
690116-06269-00BOLT, STUD$2.60$2.34Not Shipping
790201-06045-00

(replaces part #
90201-06643-00)

WASHER, PLATE | SEE NOTE$9.49$7.409 In-Stock
895380-06600-00NUT, HEXAGON$4.90$4.605 In-Stock
